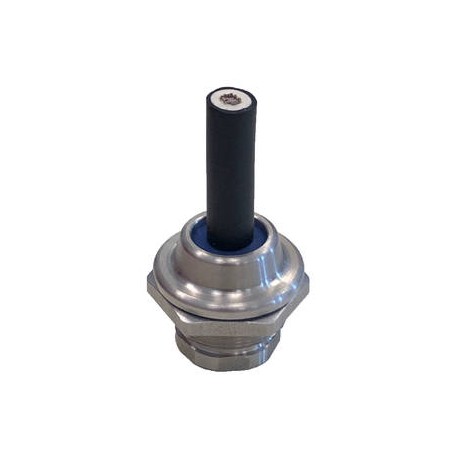

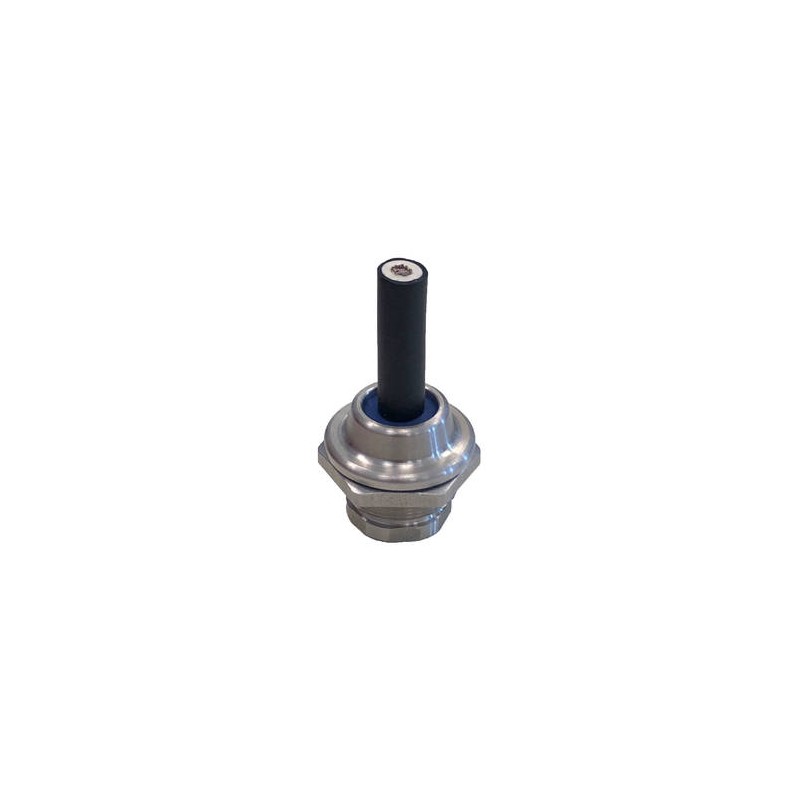

HGSM 40 FD Pack 10103628 WISKA AISI 303 stainless glands, IP69K pack silicone gaskets, for 16 to 29mm range,..
HGSM 40 FD Pack
10103628
WISKA
AISI 303 stainless glands, IP69K pack silicone gaskets, for 16 to 29mm range, M40 thread
Cable gland, stainless steel, M40
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Stainless steel A2 (1.4305) |
| Material sealing gasket | Silicone |
| Temp. range min | -60 °C |
| Temp. range max | 180 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 40 |
| Lead | 1,5 |
| Ø cable diameter min | 16 mm |
| Ø cable diameter max | 29 mm |
| Key width SW1 | 35 mm |
| Key width SW2 | 46 mm |
| Collar diameter E1 | 37 mm |
| Collar diameter E2 | 50 mm |
| LxWxS (max) | 37x40x10mm |
| BxL | 46x14mm |
| Total length TL | 33 mm - 47 mm |
| Advice | Incl. sealing rings, locknut |
| WISKA-Order no. | 10103628 |
| Type | HGSM 40 FD pack |
| Packing unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| HGSM 40 FD Pack 10103628 EN_10103628.pdf | 253 Kbytes |
|
