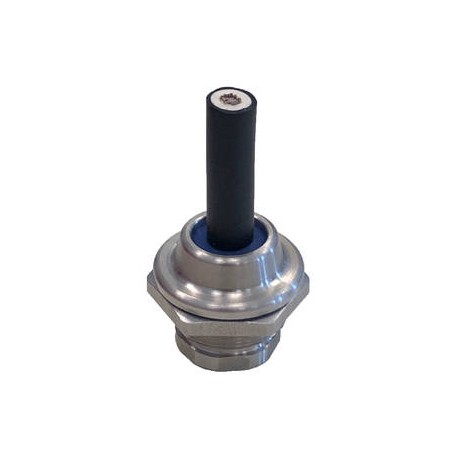

HGSM 16 FD Pack 10103624 WISKA AISI 303 stainless glands, IP69K pack silicone gaskets, for 2 to 9mm range, M..
HGSM 16 FD Pack
10103624
WISKA
AISI 303 stainless glands, IP69K pack silicone gaskets, for 2 to 9mm range, M16 thread
Cable gland, stainless steel, M16
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Stainless steel A2 (1.4305) |
| Material sealing gasket | Silicone |
| Temp. range min | -60 °C |
| Temp. range max | 180 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | M |
| Ø Connection thread D | 16 |
| Lead | 0,75 |
| Ø cable diameter min | 2 mm |
| Ø cable diameter max | 9 mm |
| Key width SW1 | 12 mm |
| Key width SW2 | 19 mm |
| Collar diameter E1 | 13 mm |
| Collar diameter E2 | 21 mm |
| LxWxS (max) | 14,5x16x5mm |
| BxL | 21x7mm |
| Total length TL | 17,5 mm - 24,5 mm |
| Advice | Incl. sealing rings, locknut |
| WISKA-Order no. | 10103624 |
| Type | HGSM 16 FD pack |
| Packing unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| HGSM 16 FD Pack 10103624 EN_10103624.pdf | 253 Kbytes |
|
