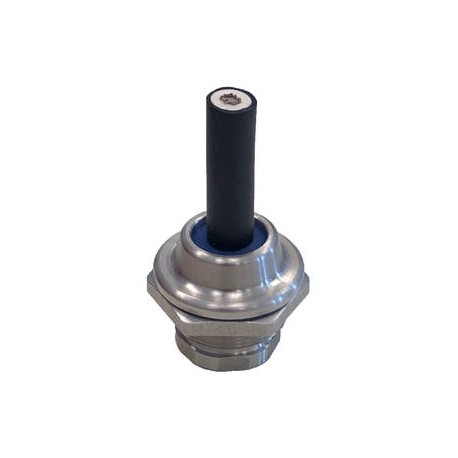

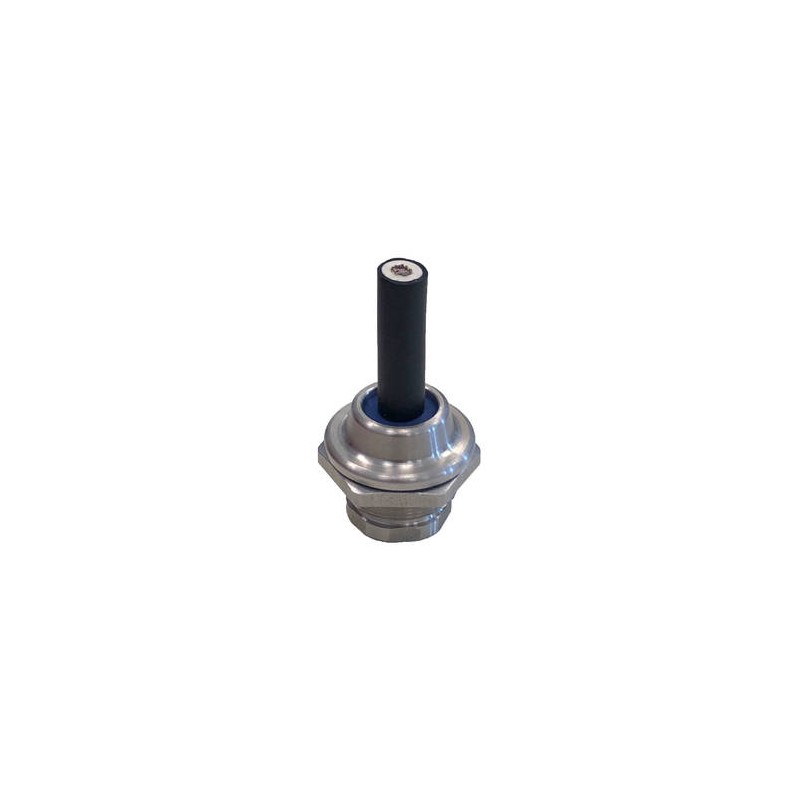

HGSM 12 FD Pack 10103623 WISKA Cable gland, stainless steel, M12
HGSM 12 FD Pack
10103623
WISKA
Cable gland, stainless steel, M12
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Stainless steel A2 (1.4305) |
| Material sealing gasket | Silicone |
| Temp. range min | -60 °C |
| Temp. range max | 180 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | M |
| Ø Connection thread D | 12 |
| Lead | 0,75 |
| Ø cable diameter min | 2 mm |
| Ø cable diameter max | 5 mm |
| Key width SW1 | 9 mm |
| Key width SW2 | 15 mm |
| Collar diameter E1 | 10 mm |
| Collar diameter E2 | 16 mm |
| LxWxS (max) | 10,5x12x4mm |
| BxL | 17x6mm |
| Total length TL | 15,5 mm - 20,5 mm |
| Advice | Incl. sealing rings, locknut |
| WISKA-Order no. | 10103623 |
| Type | HGSM 12 FD pack |
| Packing unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| HGSM 12 FD Pack 10103623 EN_10103623.pdf | 252 Kbytes |
|
