FD 25/B 50062894 WISKA Conical wall pass, black RAL 9005, IP66/67 for DN25, range from 11 to 17mm.
FD 25/B
50062894
WISKA
50
Conical wall pass, black RAL 9005, IP66/67 for DN25, range from 11 to 17mm.

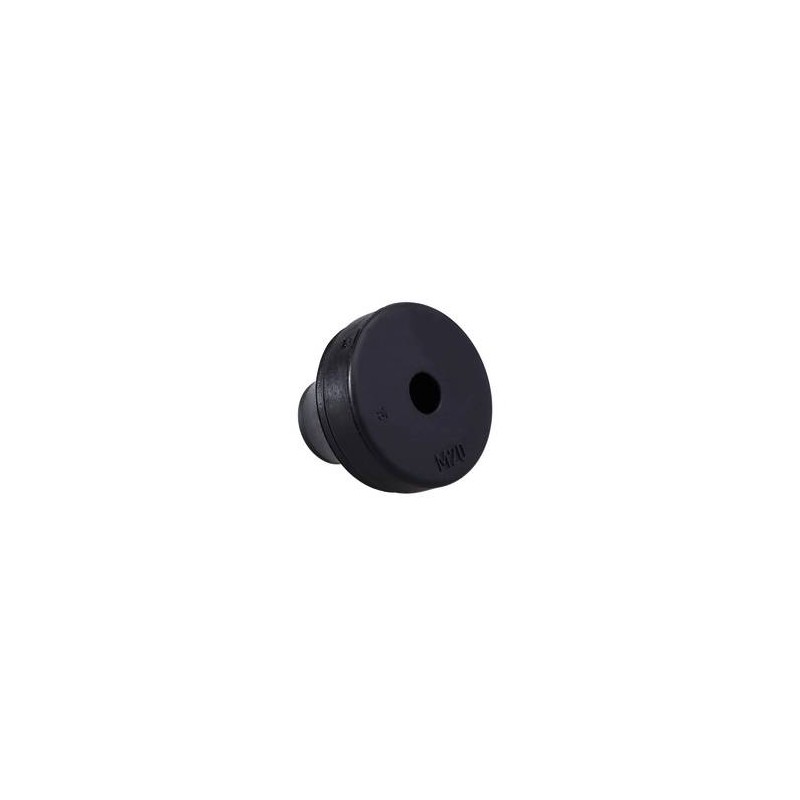

FLIP cable grommet, EPDM, RAL 9005, M25
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 110 °C |
| Protection class | IP66 / IP67 |
| Thread type | M |
| Ø Connection thread D | 25 |
| Ø cable diameter min | 11 mm |
| Ø cable diameter max | 17 mm |
| Total length TL | 21,5 mm |
| Ø Drilling | 25 mm - 26 mm |
| Wall thickness S | 1 mm - 4 mm |
| Product Color | RAL 9005 |
| Order no. RAL 9005 | 50062894 |
| Type | FD 25 |
| Packing unit | 50 |
| ETIM-Classification | EC000451 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| FD 25/B 50062894 EN_50062894.pdf | 176 Kbytes |
|
