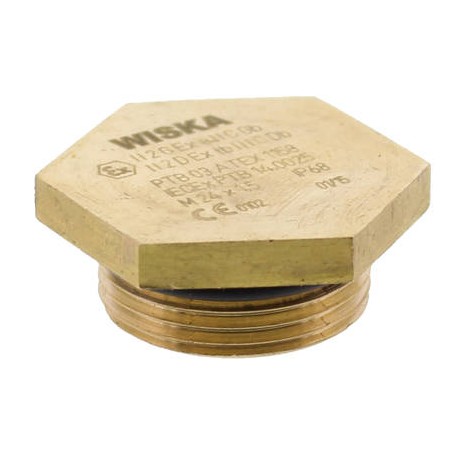

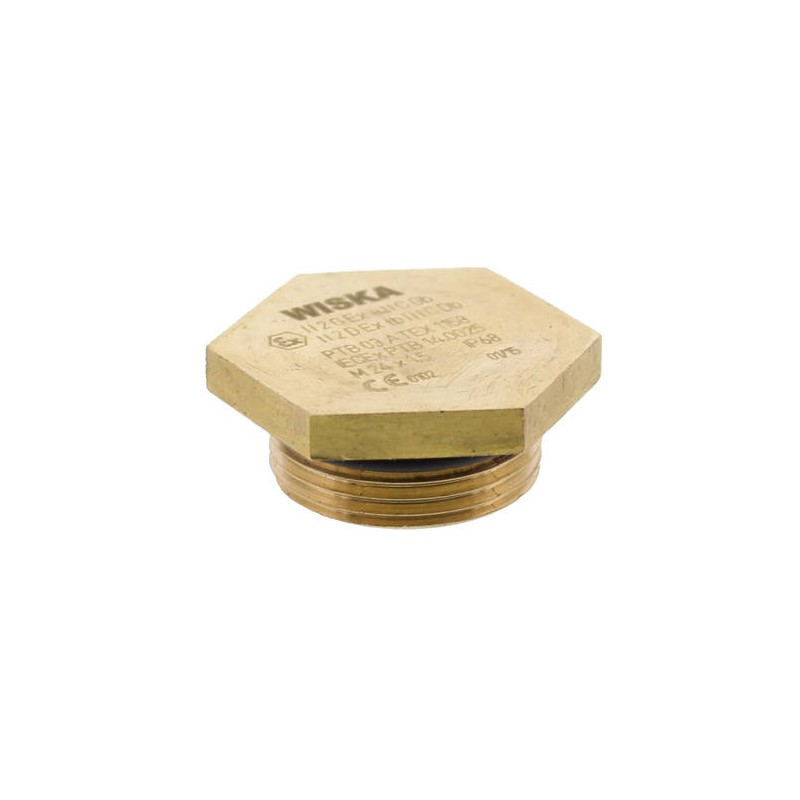

EX-VSM 30 10030204 WISKA Hexagonal blind plug. metal "ATEX" DIN 89284, IP54 thread M30
EX-VSM 30
10030204
WISKA
10
Hexagonal blind plug. metal "ATEX" DIN 89284, IP54 thread M30
Ex-stop end DIN 89284, brass, with mounted o-ring, M30
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Brass |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 120 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex e, Ex tb |
| Ex-Certificate | IECEx, ATEX |
| Ø Connection thread D | 30 |
| Thread type | M |
| Lead | 1,5 |
| Length screw-in thread L | 10 mm |
| Key width SW | 36 mm |
| Collar diameter (E) | 42 mm |
| Total length TL | 14 mm |
| Surface | Bright |
| Order no. bright | 10030204 |
| Type | EX-VSM 30 |
| Packing unit | 1 |
| ETIM-Classification | EC000032 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EX-VSM 30 10030204 EN_10030204.pdf | 233 Kbytes |
|
