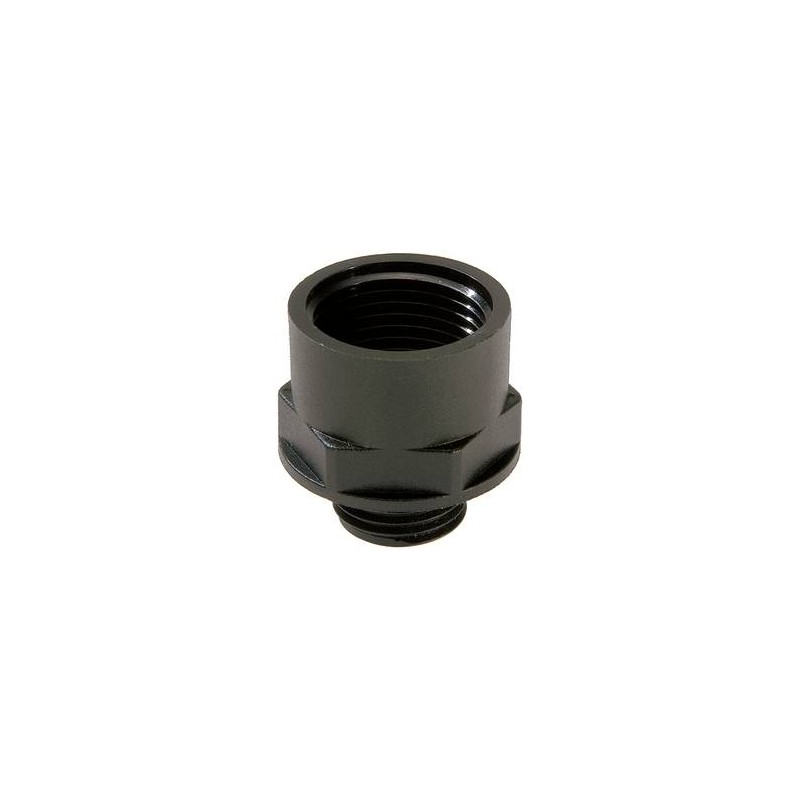

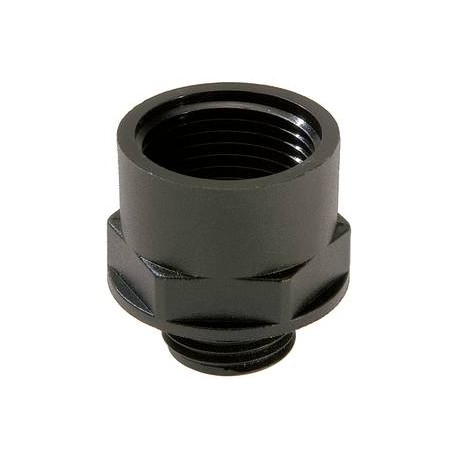

EX-KEM 32/40 10064745 WISKA Hexagonal magnification. Black PA "ATEX" IP66, thread ext. M32 threaded int. M40
EX-KEM 32/40
10064745
WISKA
50
Hexagonal magnification. Black PA "ATEX" IP66, thread ext. M32 threaded int. M40
Ex-enlargement adaptor, polyamide, M32-M40
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Polyamide, fibre reinforced |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | IECEx, ATEX |
| Thread type outer | M |
| Ø outer thread | 32 |
| Lead outer | 1,5 |
| Length screw-in thread L | 12 mm |
| Thread type inner | M |
| Ø inner thread | 40 |
| Lead inner | 1,5 |
| Length internal thread | 15,5 mm |
| Key width SW | 46 mm |
| Collar diameter (E) | 51 mm |
| Total length TL | 30 mm |
| Form | A |
| Product Color | RAL 9005 |
| Equipment | Incl. connection thread gasket |
| Order no. RAL 9005 | 10064745 |
| Type | EX-KEM 32/40 |
| Packing unit | 50 |
| ETIM-Classification | EC000938 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| EX-KEM 32/40 10064745 EN_10064745.pdf | 255 Kbytes |
|
