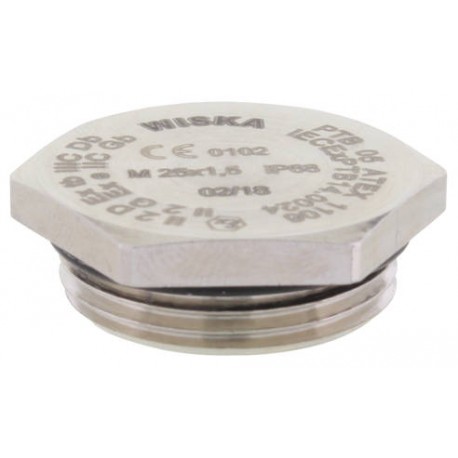

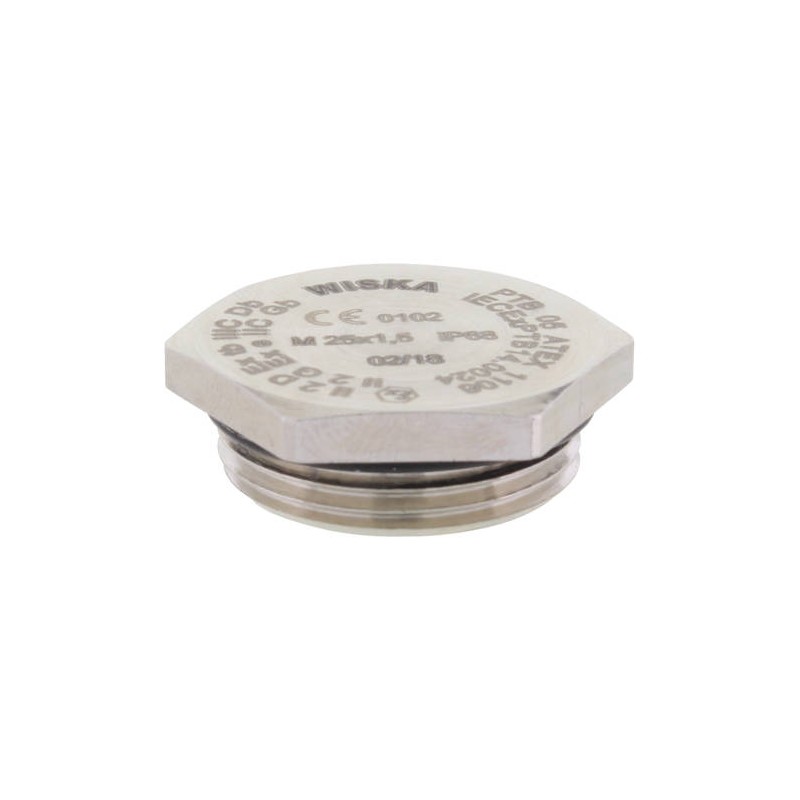

EX-EMVS 63 10065338 WISKA Hexagonal blind plug. metal "ATEX" IP68, thread M63
EX-EMVS 63
10065338
WISKA
Hexagonal blind plug. metal "ATEX" IP68, thread M63
Ex stop end, brass nickel-plated, with O-ring EPDM, M63
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Brass nickel-plated |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 120 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex e, Ex tb |
| Ex-Certificate | IECEx, ATEX |
| Thread type | M |
| Ø Connection thread D | 63 |
| Lead | 1,5 |
| Length screw-in thread L | 10 mm |
| Key width SW | 67 mm |
| Collar diameter (E) | 77 mm |
| Total length TL | 16 mm |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10065338 |
| Type | EX-EMVS 63 |
| Packing unit | 1 |
| ETIM-Classification | EC000032 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EX-EMVS 63 10065338 EN_10065338.pdf | 188 Kbytes |
|
