EVSG-ORD 50/GL
10064640
WISKA
50

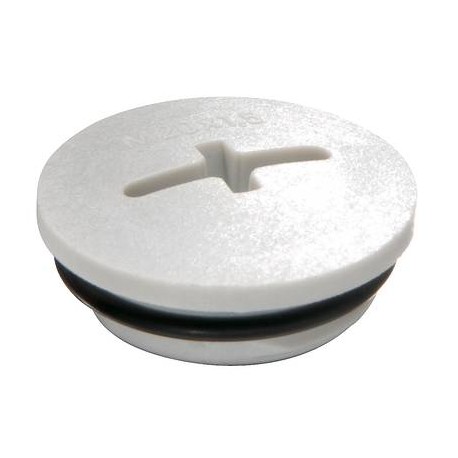

Light grey round cap RAL 7035, PA IP68 thread M50

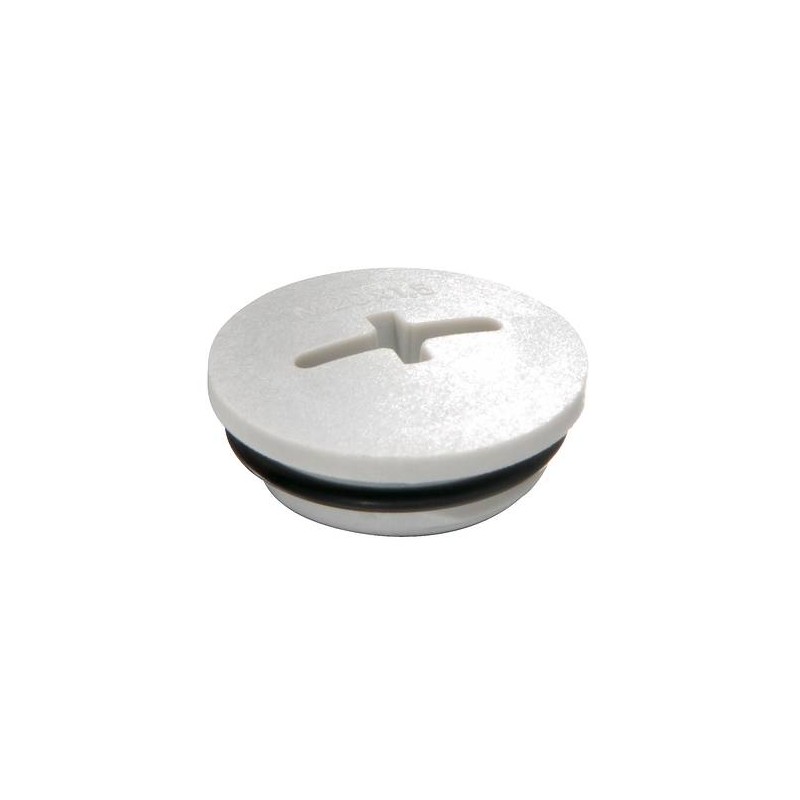

Stop end with mounted O-Ring, polyamide, RAL 7035, M50
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Material | Polyamide, fibre reinforced |
Material sealing gasket | EPDM |
Temp. range min | -40 °C |
Temp. range max | 100 °C |
Glow wire test | 650 °C |
Protection class | IP66 / IP68 (5 bar 30 min) |
Thread type | M |
Ø Connection thread D | 50 |
Lead | 1,5 |
Length screw-in thread L | 10 mm |
Total length TL | 15 mm |
External diameter ED | 56 mm |
Product Color | RAL 7035 |
Order no. RAL 7035 | 10064640 |
Type | EVSG-ORD 50 |
Packing unit | 50 |
ETIM-Classification | EC000032 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG WISKA CABLE ENTRIES AND PROTECTION EN.pdf | 8 Mbytes | |
PDF CATALOG WISKA JUCTION BOXES EN.pdf | 3 Mbytes | |
PDF CATALOG WISKA LIGHTING INSTALLATION AND MARITIME APP EN.pdf | 5 Mbytes | |
EVSG-ORD 50/GL 10064640 EN_10064640.pdf | 187 Kbytes |
