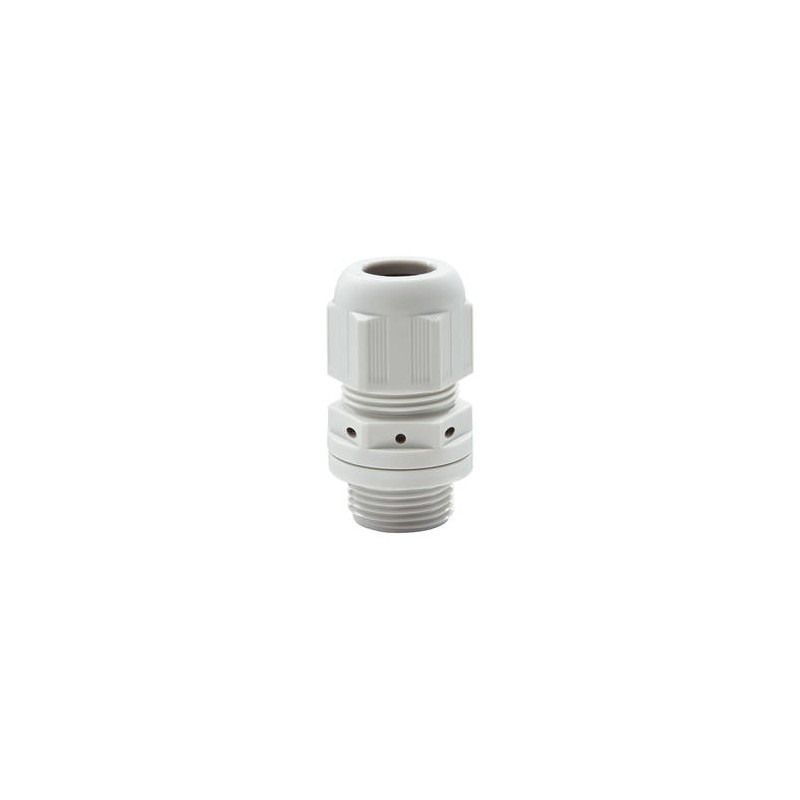

ESVG 25/GL 10100666 WISKA VentGLAND cable glands, light grey RAL 7035, IP69K range from 9 to 17mm, thread M25
ESVG 25/GL
10100666
WISKA
VentGLAND cable glands, light grey RAL 7035, IP69K range from 9 to 17mm, thread M25
Pressure compensation cable gland, polyamide, RAL 7035, M25
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material membrane | ePTFE |
| Material sealing gasket | EPDM |
| Airflow at 70mbar | 65 l/h |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Glow wire test | 750 °C |
| Protection class | IP68 / IP69 |
| Thread type | M |
| Ø Connection thread D | 25 |
| Lead | 1,5 |
| Length screw-in thread L | 10 mm |
| Ø cable diameter min | 9 mm |
| Ø cable diameter max | 17 mm |
| Ø cable diameter UL | 10,8 mm - 15,8 mm |
| Key width SW | 29 mm |
| Collar diameter (E) | 32 mm |
| Install. torques fitting | 10 N m |
| Install. torques cap nut | 4 N m |
| Total length TL | 45 mm - 54 mm |
| Equipment | Incl. connection thread gasket |
| Product Color | RAL 7035 |
| Order no. RAL 7035 | 10100666 |
| Type | ESVG 25 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| ESVG 25/GL 10100666 EN_10100666.pdf | 241 Kbytes |
|
