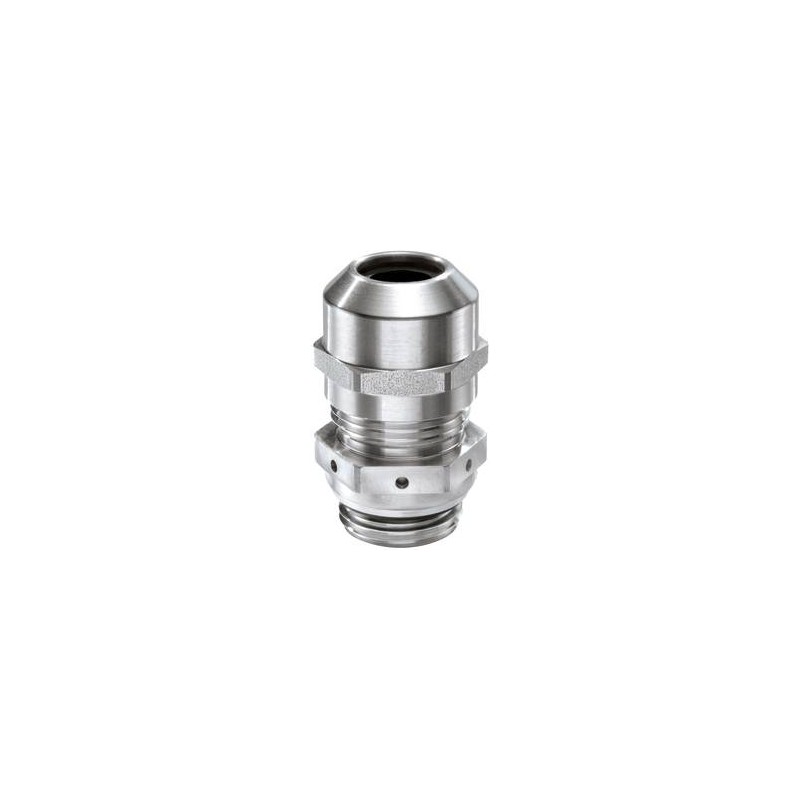

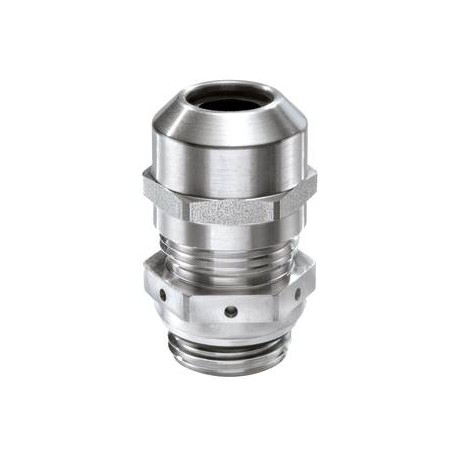

ESSVG 16 10104410 WISKA Stainless VentGLAND cable glands, AISI 303, IP69K range from 4.5 to 10mm, thread M16
ESSVG 16
10104410
WISKA
Stainless VentGLAND cable glands, AISI 303, IP69K range from 4.5 to 10mm, thread M16
Pressure compensation cable gland, stainless steel 1.4305, M16
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Stainless steel A2 (1.4305) |
| Material membrane | ePTFE |
| Material sealing gasket | EPDM |
| Airflow at 70mbar | 52 l/h |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 / IP69 |
| Thread type | M |
| Ø Connection thread D | 16 |
| Lead | 1,5 |
| Length screw-in thread L | 6 mm |
| Ø cable diameter min | 4,5 mm |
| Ø cable diameter max | 10 mm |
| Key width SW | 20 mm |
| Collar diameter (E) | 22 mm |
| Install. torques fitting | 4 N m |
| Install. torques cap nut | 4 N m |
| Total length TL | 34 mm - 42 mm |
| WISKA-Order no. | 10104410 |
| Type | ESSVG 16 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| ESSVG 16 10104410 EN_10104410.pdf | 326 Kbytes |
|
