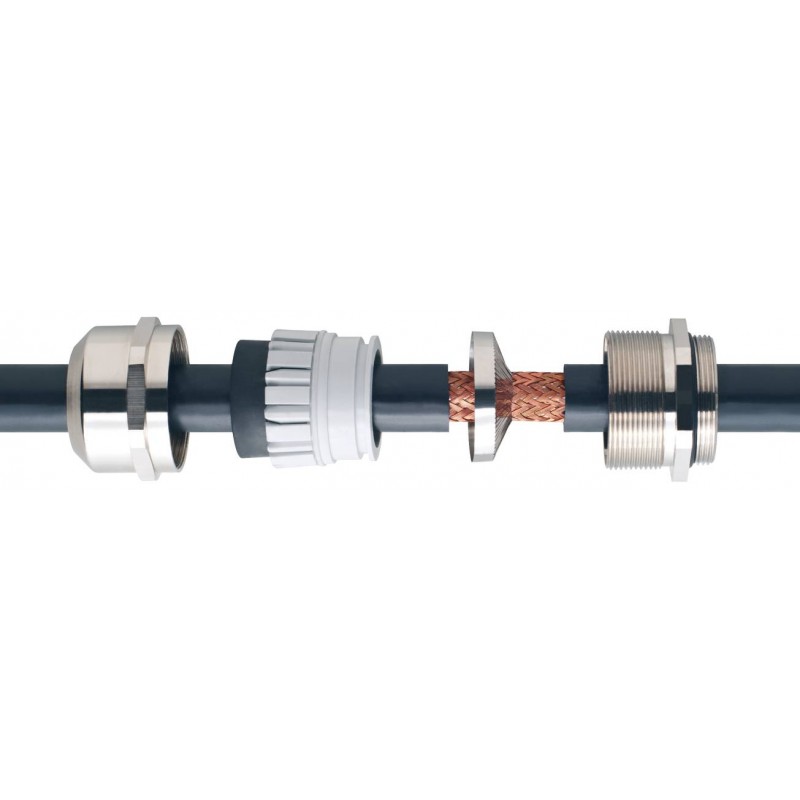

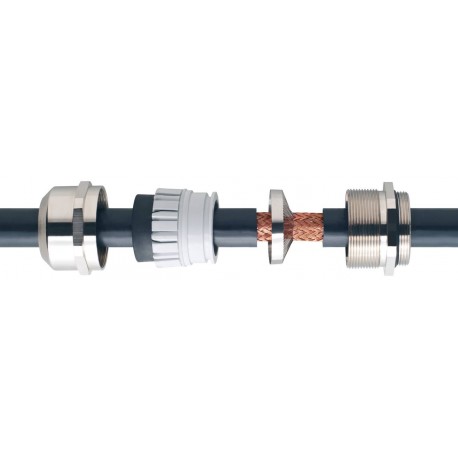

ESSKV 63 EMV-S 10106115 WISKA Stainless glands. AISI 303, IP68 for EMC (interleaved ring), 34 to 48mm range,..
ESSKV 63 EMV-S
10106115
WISKA
Stainless glands. AISI 303, IP68 for EMC (interleaved ring), 34 to 48mm range, M63 thread
EMC-cable gland, stainless steel A2 with short thread, M63
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Stainless steel A2 (1.4305) |
| Material sealing gasket | EPDM |
| Material clamping cage | Polyamide |
| Material earthing insert | Stainless steel 1.4310 |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | M |
| Ø Connection thread D | 63 |
| Lead | 1,5 |
| Length screw-in thread L | 10 mm |
| Ø cable diameter min | 34 mm |
| Ø cable diameter max | 48 mm |
| Cable Ø shield external | 30 mm - 44 mm |
| Ø cable diameter UL | 38,1 mm - 47,5 mm |
| Key width SW | 68 mm |
| Collar diameter (E) | 75 mm |
| Total length TL | 56 mm - 67 mm |
| Type of cable anchorage | A |
| Install. torques cap nut | 40 N m |
| Install. torques fitting | 40 N m |
| Impact category | 6 |
| WISKA-Order no. | 10106115 |
| Type | ESSKV 63 EMV-S |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| ESSKV 63 EMV-S 10106115 EN_10106115.pdf | 198 Kbytes |
|
