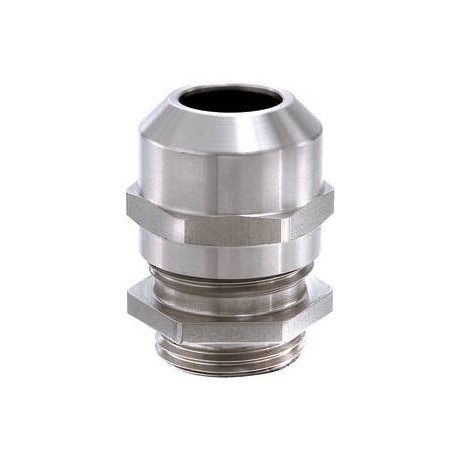

ESSKV 40 LT 10065967 WISKA Stainless glands. AISI 303, IP68 -60oC, range from 16 to 28mm, thread M40
ESSKV 40 LT
10065967
WISKA
5
Stainless glands. AISI 303, IP68 -60oC, range from 16 to 28mm, thread M40

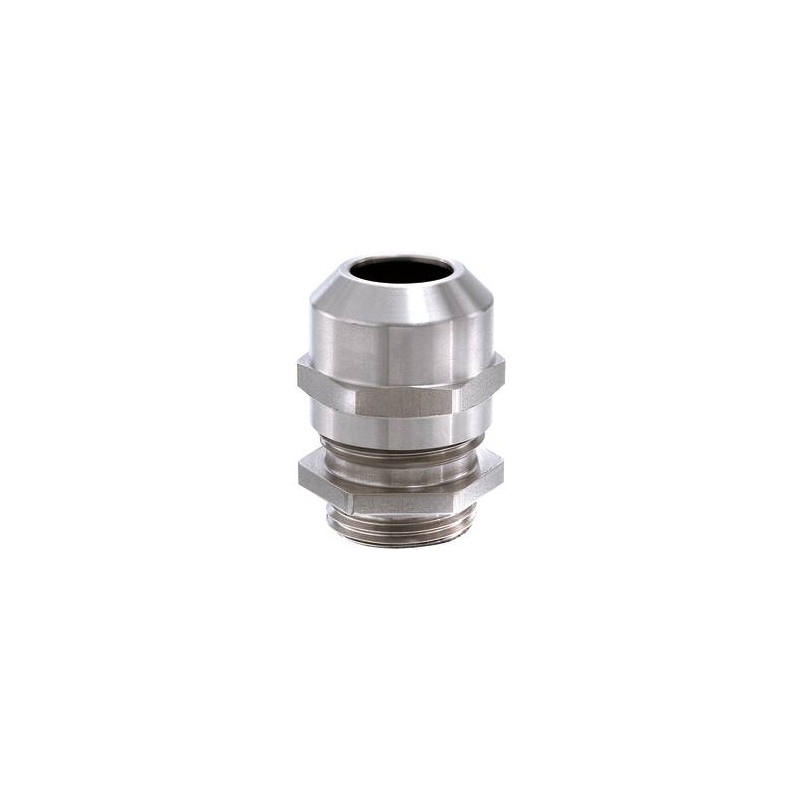

Cable gland LowTemp, stainless steel, M40
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Edelstahl A2 (1.4305) |
| Material clamping cage | Polyamide |
| Material sealing gasket | Silicone |
| Temp. range min | -60 °C |
| Temp. range max | 100 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 40 |
| Lead | 1,5 |
| Length screw-in thread L | 8 mm |
| Ø cable diameter min | 16 mm |
| Ø cable diameter max | 28 mm |
| Key width SW | 46 mm |
| Collar diameter (E) | 50 mm |
| Total length TL | 44 mm - 55 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 20 N m |
| Install. torques cap nut | 20 N m |
| Impact category | 6 |
| WISKA-Order no. | 10065967 |
| Type | ESSKV 40 LT |
| Packing unit | 5 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| ESSKV 40 LT 10065967 EN_10065967.pdf | 314 Kbytes |
|
