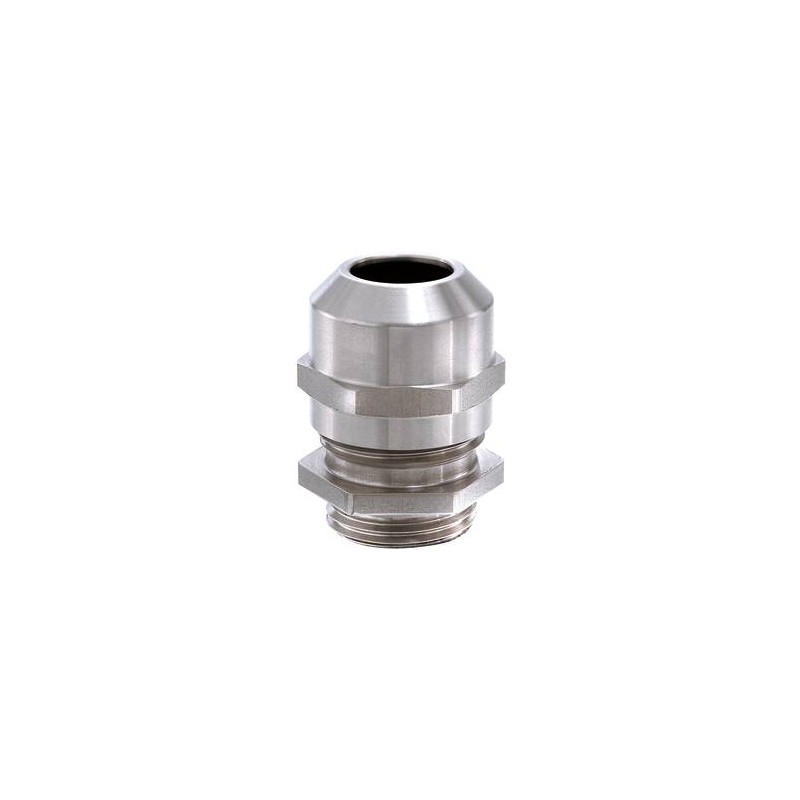

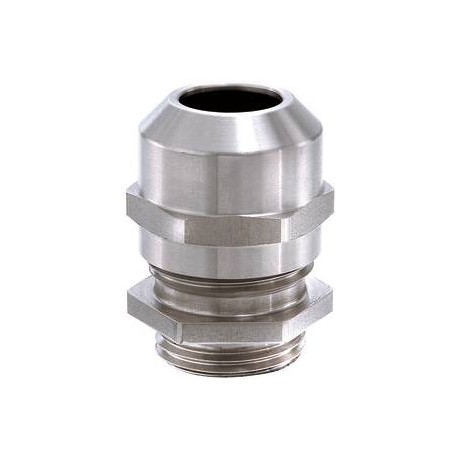

ESSKV-4 25 10069103 WISKA Stainless glands. AISI 316L, IP68 range from 10 to 17mm, thread M25
ESSKV-4 25
10069103
WISKA
10
Stainless glands. AISI 316L, IP68 range from 10 to 17mm, thread M25
Cable gland, stainless steel A4, M25
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Stainless steel A4 (1.4404) |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 25 |
| Lead | 1,5 |
| Length screw-in thread L | 7 mm |
| Ø cable diameter min | 9 mm |
| Ø cable diameter max | 17 mm |
| Ø cable diameter UL | 10,8 mm - 15,8 mm |
| Key width SW | 30 mm |
| Collar diameter (E) | 33 mm |
| Total length TL | 33 mm - 42 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 10 N m |
| Install. torques cap nut | 10 N m |
| Impact category | 6 |
| WISKA-Order no. | 10069103 |
| Type | ESSKV-4 25 |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| ESSKV-4 25 10069103 EN_10069103.pdf | 328 Kbytes |
|
