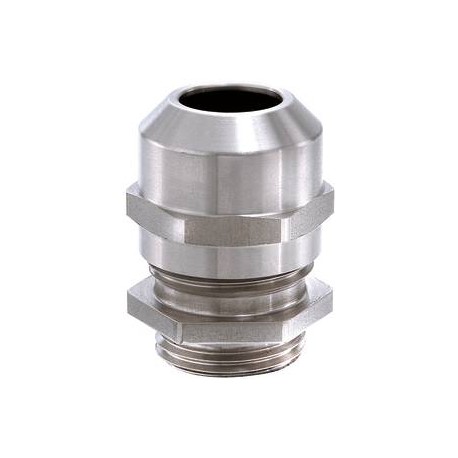

ESSKV-4 20 LT 10065883 WISKA Stainless glands. AISI 316L, IP68 -60oC, range 6 to 13mm, thread M20
ESSKV-4 20 LT
10065883
WISKA
10
Stainless glands. AISI 316L, IP68 -60oC, range 6 to 13mm, thread M20

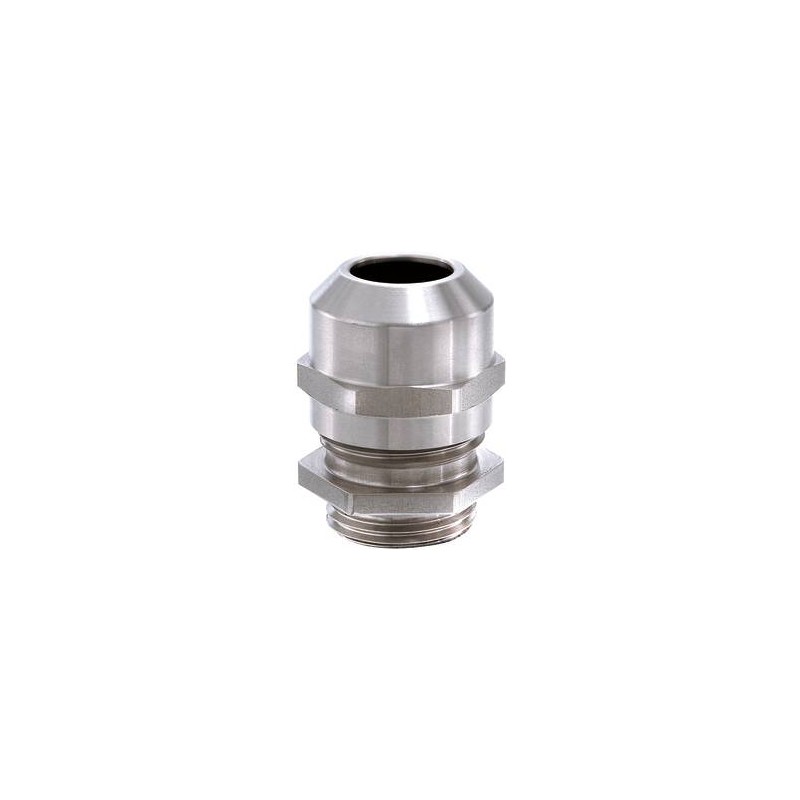

Cable gland LowTemp, stainless steel A4, M20
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Stainless steel A4 (1.4404) |
| Material clamping cage | Polyamide |
| Material sealing gasket | Silicone |
| Temp. range min | -60 °C |
| Temp. range max | 100 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 20 |
| Lead | 1,5 |
| Length screw-in thread L | 6 mm |
| Ø cable diameter min | 6 mm |
| Ø cable diameter max | 13 mm |
| Key width SW | 24 mm |
| Collar diameter (E) | 27 mm |
| Total length TL | 29 mm - 37 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 8 N m |
| Install. torques cap nut | 8 N m |
| Impact category | 6 |
| WISKA-Order no. | 10065883 |
| Type | ESSKV-4 20 LT |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| ESSKV-4 20 LT 10065883 EN_10065883.pdf | 314 Kbytes |
|
