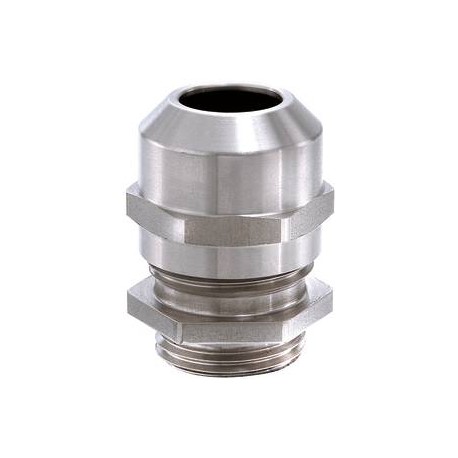

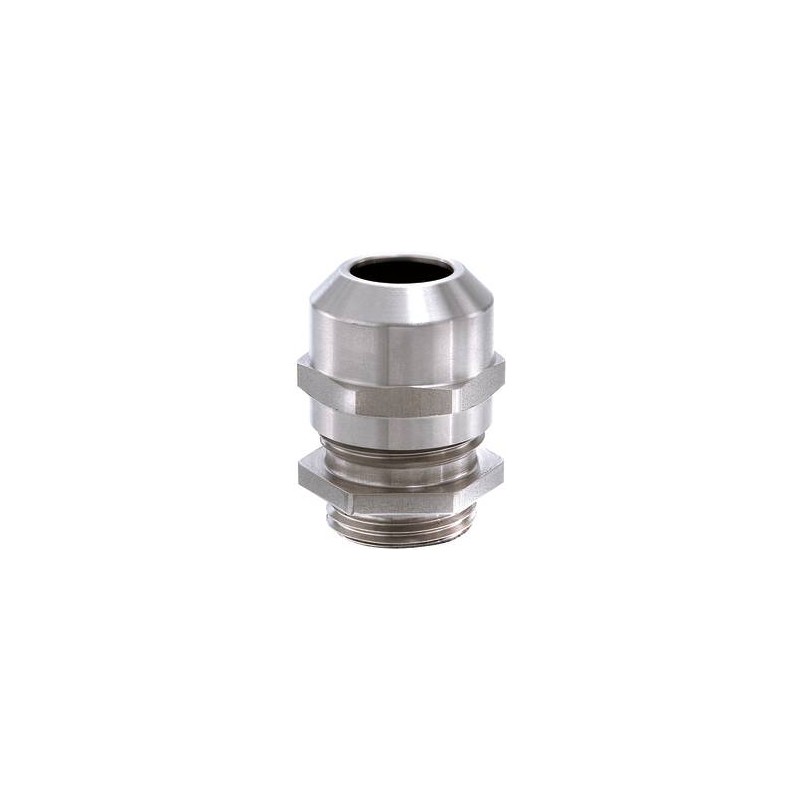

ESSKV 25 LT 10065965 WISKA Stainless glands. AISI 303, IP68 -60oC, range from 9 to 17mm, thread M25
ESSKV 25 LT
10065965
WISKA
50
Stainless glands. AISI 303, IP68 -60oC, range from 9 to 17mm, thread M25
Cable gland LowTemp, stainless steel, M25
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Edelstahl A2 (1.4305) |
| Material clamping cage | Polyamide |
| Material sealing gasket | Silicone |
| Temp. range min | -60 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | M |
| Ø Connection thread D | 25 |
| Lead | 1,5 |
| Length screw-in thread L | 7 mm |
| Ø cable diameter min | 9 mm |
| Ø cable diameter max | 17 mm |
| Key width SW | 30 mm |
| Collar diameter (E) | 33 mm |
| Total length TL | 33 mm - 42 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 10 N m |
| Install. torques cap nut | 10 N m |
| Impact category | 6 |
| WISKA-Order no. | 10065965 |
| Type | ESSKV 25 LT |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| ESSKV 25 LT 10065965 EN_10065965.pdf | 314 Kbytes |
|
