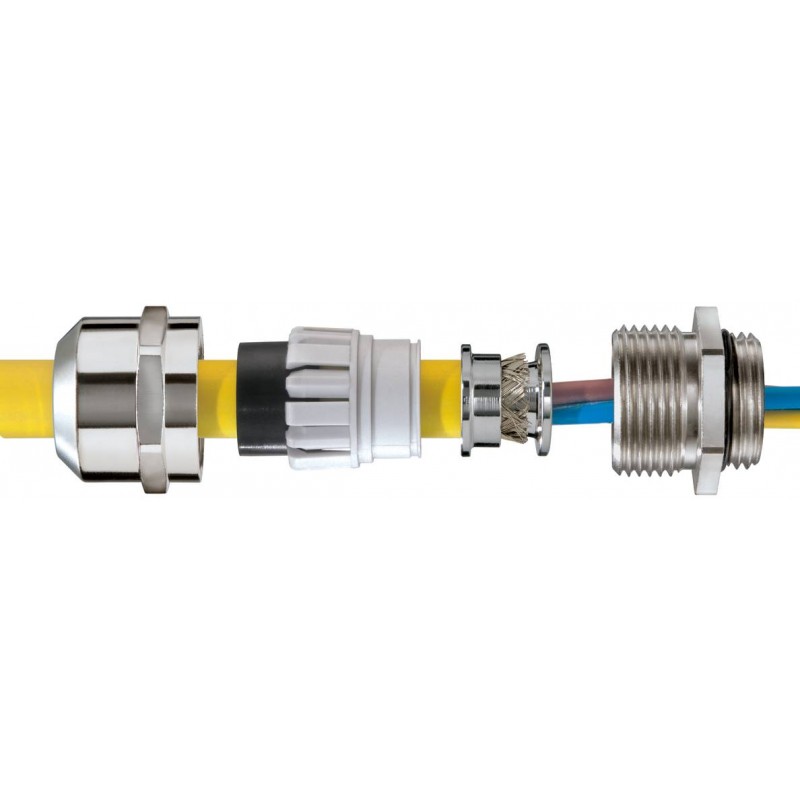

ESSKV 16 EMV-Z 10069017 WISKA Stainless glands. AISI 303, IP68 for EMC range from 5 to 10mm, thread M16
ESSKV 16 EMV-Z
10069017
WISKA
50
Stainless glands. AISI 303, IP68 for EMC range from 5 to 10mm, thread M16
EMC-cable gland, stainless steel A2, M16
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Stainless steel A2 (1.4305) |
| Material sealing gasket | EPDM |
| Material clamping cage | Polyamide |
| Material earthing insert | Brass chromium-plated |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | M |
| Ø Connection thread D | 16 |
| Lead | 1,5 |
| Length screw-in thread L | 5 mm |
| Ø cable diameter min | 4,5 mm |
| Ø cable diameter max | 10 mm |
| Ø cable below cable shield | 7,5 mm |
| Ø cable diameter UL | 6 mm - 8,6 mm |
| Key width SW | 22 mm |
| Collar diameter (E) | 24 mm |
| Total length TL | 26 mm - 34 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 4 N m |
| Install. torques cap nut | 4 N m |
| Impact category | 6 |
| WISKA-Order no. | 10069017 |
| Type | ESSKV 16 EMV-Z |
| ETIM-Classification | EC000441 |
| Packing unit | 10 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| ESSKV 16 EMV-Z 10069017 EN_10069017.pdf | 217 Kbytes |
|
