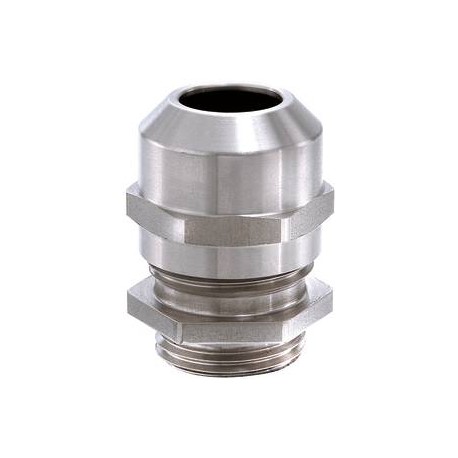

ESSKV 12 10069000 WISKA Stainless glands. AISI 303, IP68 range from 4 to 7mm, thread M12
ESSKV 12
10069000
WISKA
10
Stainless glands. AISI 303, IP68 range from 4 to 7mm, thread M12
Cable gland, stainless steel, M12
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Stainless steel A2 (1.4305) |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 12 |
| Lead | 1,5 |
| Length screw-in thread L | 5 mm |
| Ø cable diameter min | 3 mm |
| Ø cable diameter max | 7 mm |
| Ø cable diameter UL | 4,1 mm - 6 mm |
| Key width SW | 17 mm |
| Collar diameter (E) | 19 mm |
| Total length TL | 23 mm - 30 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 4 N m |
| Install. torques cap nut | 4 N m |
| Impact category | 6 |
| WISKA-Order no. | 10069000 |
| Type | ESSKV 12 |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| ESSKV 12 10069000 EN_10069000.pdf | 328 Kbytes |
|
