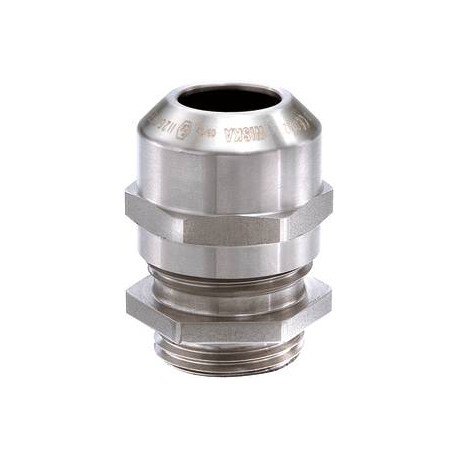

ESSKE-4 16 10069233 WISKA Stainless glands. "ATEX" AISI 316L, IP68 range from 5 to 10mm, thread M16
ESSKE-4 16
10069233
WISKA
10
Stainless glands. "ATEX" AISI 316L, IP68 range from 5 to 10mm, thread M16
Ex-cable gland, stainless steel 1.4404, M16
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Stainless steel A4 (1.4404) |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 75 °C |
| Protection class | IP68 (5 bar 30 min), IP66 |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | IECEx, ATEX |
| Thread type | M |
| Ø Connection thread D | 16 |
| Lead | 1,5 |
| Length screw-in thread L | 5 mm |
| Ø cable diameter min | 5 mm |
| Ø cable diameter max | 10 mm |
| Ø cable diameter UL | 6 mm - 8,6 mm |
| Key width SW | 22 mm |
| Collar diameter (E) | 24 mm |
| Total length TL | 26 mm - 34 mm |
| Install. torques fitting | 4 N m |
| Install. torques cap nut | 4 N m |
| WISKA-Order no. | 10069233 |
| Type | ESSKE-4 16 |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| ESSKE-4 16 10069233 EN_10069233.pdf | 389 Kbytes |
|
