ESKVZ 16/B 10060723 WISKA PA cable glands, black RAL 9005 + flange clamping ,IP68, range from 4.5 to 10mm, t..
ESKVZ 16/B
10060723
WISKA
100
PA cable glands, black RAL 9005 + flange clamping ,IP68, range from 4.5 to 10mm, thread M16

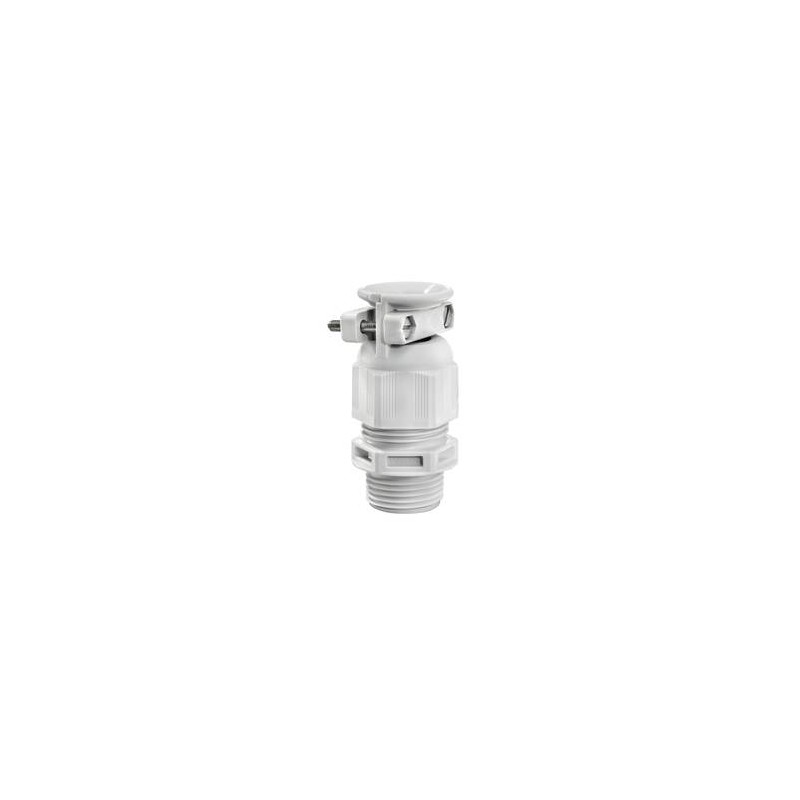

Cable gland with external strain relief, polyamide, M16, RAL 7035
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Glow wire test | 750 °C |
| Thread type | M |
| Ø Connection thread D | 16 |
| Lead | 1,5 |
| Length screw-in thread L | 9 mm |
| Ø cable diameter min | 4,5 mm |
| Ø cable diameter max | 10 mm |
| Ø cable diameter UL | 6 mm - 8,6 mm |
| Key width SW | 20 mm |
| Collar diameter (E) | 22 mm |
| Total length TL | 40 mm - 46 mm |
| Type of cable anchorage | B |
| Install. torques fitting | 3,5 N m |
| Install. torques cap nut | 3 N m |
| Impact category | 2 |
| Torque clamp srew | 0,3 N m |
| Product Color | RAL 7035 |
| Type | ESKVZ 16 |
| Order no. RAL 7035 | 10060723 |
| Packing unit | 100 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| ESKVZ 16/B 10060723 EN_10060723.pdf | 240 Kbytes |
|
