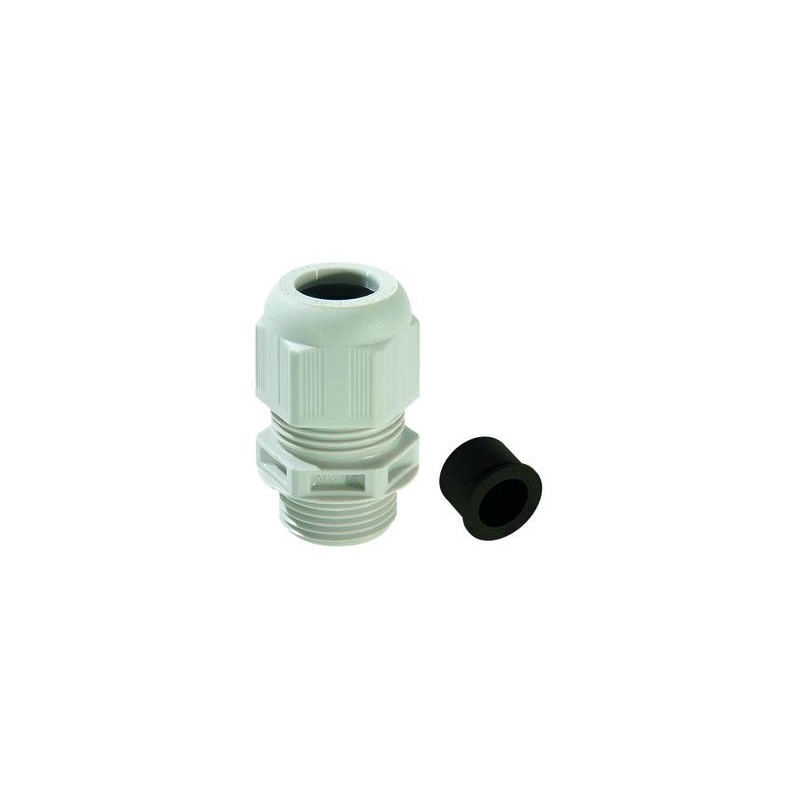

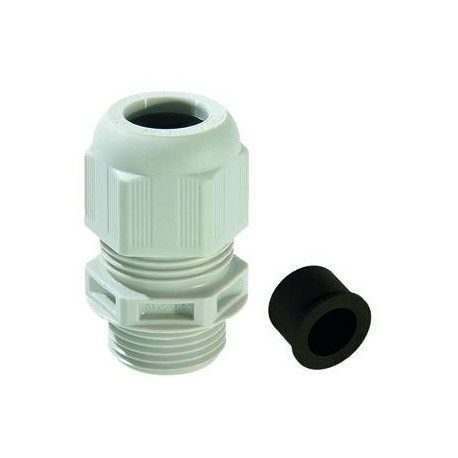

ESKV-RDE 50/GL 10064982 WISKA PA cable glands, light grey RAL 7035 IP68, range 16 to 25mm, thread M50
ESKV-RDE 50/GL
10064982
WISKA
4
PA cable glands, light grey RAL 7035 - IP68, range 16 to 25mm, thread M50
Cable gland with reduction sealing insert, polyamide, M50, RAL 7035
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | M |
| Ø Connection thread D | 50 |
| Lead | 1,5 |
| Length screw-in thread L | 14 mm |
| Ø cable diameter min | 16 mm |
| Ø cable diameter max | 35 mm |
| Key width SW | 55 mm |
| Collar diameter (E) | 61 mm |
| Total length TL | 59 mm - 72 mm |
| Glow wire test | 750 °C |
| Type of cable anchorage | A |
| Install. torques fitting | 30 N m |
| Install. torques cap nut | 30 N m |
| Impact category | 5 |
| Equipment | Incl. connection thread gasket |
| Advice | With reduction insert |
| Product Color | RAL 7035 |
| Order no. RAL 7035 | 10064982 |
| Type | ESKV-RDE 50 |
| Packing unit | 4 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| ESKV-RDE 50/GL 10064982 EN_10064982.pdf | 215 Kbytes |
|
