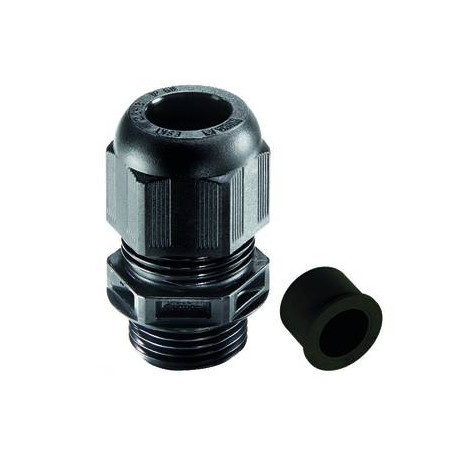

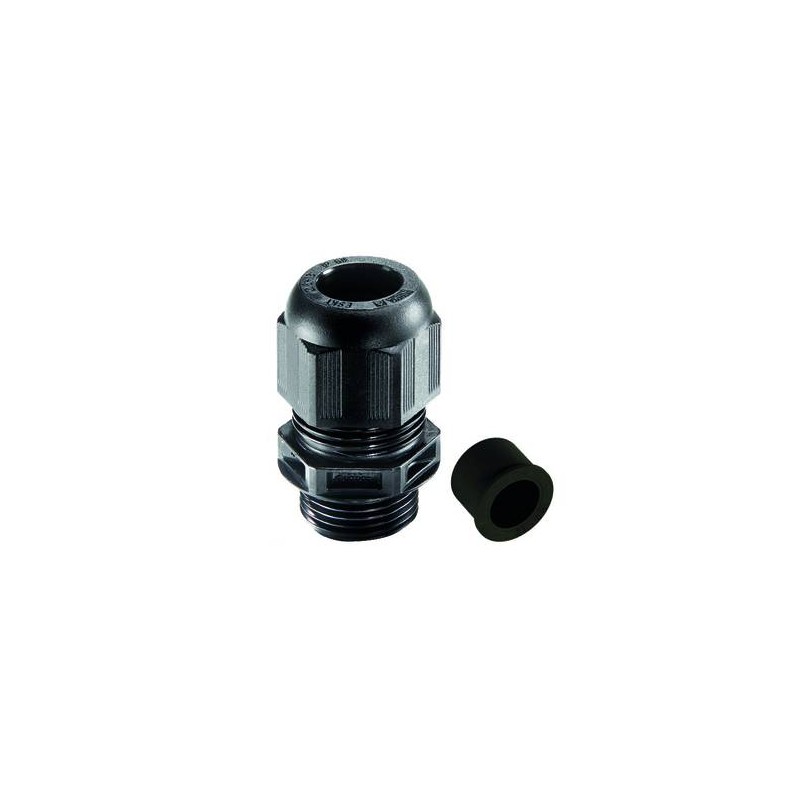

ESKV-RDE 32/B 10064996 WISKA PA cable glands, black RAL 9005 IP68, range from 9 to 14mm, thread M32
ESKV-RDE 32/B
10064996
WISKA
25
PA cable glands, black RAL 9005 - IP68, range from 9 to 14mm, thread M32
Cable gland with reduction sealing insert, polyamide, M32, RAL 9005
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 32 |
| Lead | 1,5 |
| Length screw-in thread L | 12 mm |
| Ø cable diameter min | 9 mm |
| Ø cable diameter max | 21 mm |
| Key width SW | 36 mm |
| Collar diameter (E) | 40 mm |
| Total length TL | 42 mm - 51 mm |
| Glow wire test | 750 °C |
| Type of cable anchorage | A |
| Install. torques fitting | 15 N m |
| Install. torques cap nut | 4 N m |
| Impact category | 4 |
| Advice | With reduction insert |
| Product Color | RAL 9005 |
| Order no. RAL 9005 | 10064996 |
| Type | ESKV-RDE 32 |
| Packing unit | 25 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| ESKV-RDE 32/B 10064996 EN_10064996.pdf | 229 Kbytes |
|
