View larger

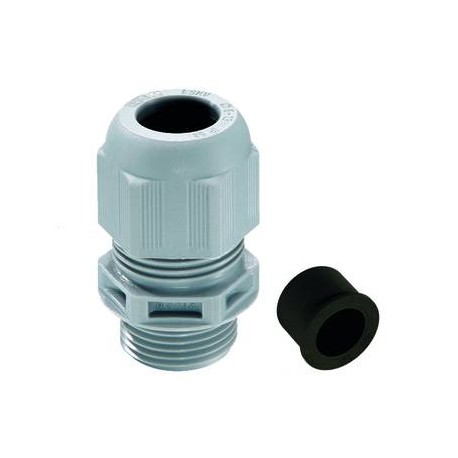

ESKV-RDE 12/G 10064984 WISKA PA cable glands, dark grey RAL 7001 IP68, range 1 to 3mm, thread M12
ESKV-RDE 12/G
10064984
WISKA
50
PA cable glands, dark grey RAL 7001 - IP68, range 1 to 3mm, thread M12

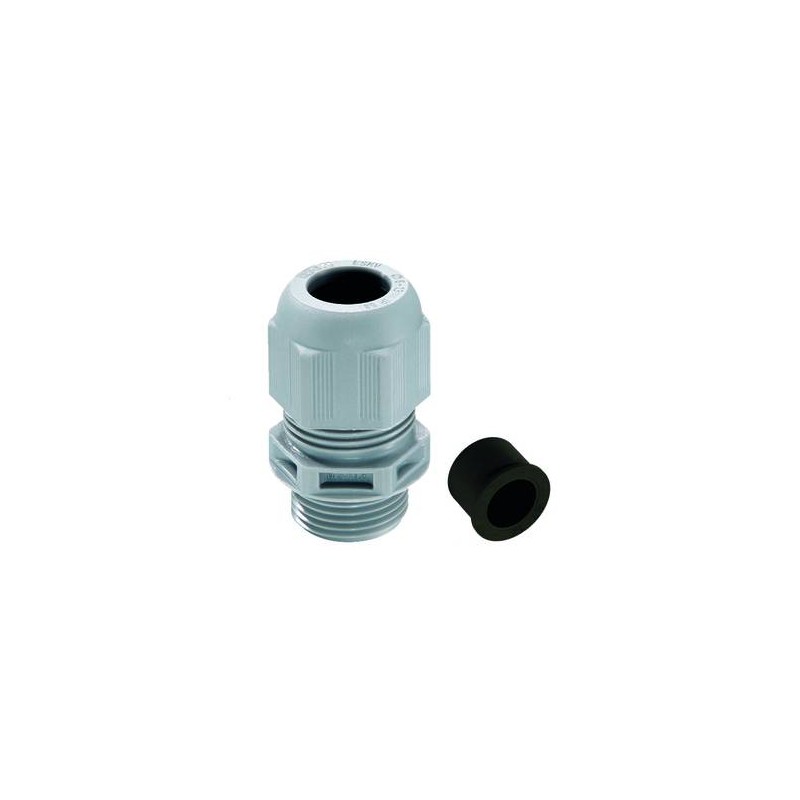

Cable gland with reduction sealing insert, polyamide, M12, RAL 7001
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 12 |
| Lead | 1,5 |
| Length screw-in thread L | 9 mm |
| Ø cable diameter min | 1 mm |
| Ø cable diameter max | 7 mm |
| Key width SW | 16 mm |
| Collar diameter (E) | 18 mm |
| Total length TL | 29 mm - 34 mm |
| Glow wire test | 750 °C |
| Type of cable anchorage | A |
| Install. torques fitting | 2 N m |
| Install. torques cap nut | 2 N m |
| Impact category | 2 |
| Advice | With reduction insert |
| Product Color | RAL 7001 |
| Order no. RAL 7001 | 10064984 |
| Type | ESKV-RDE 12 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| ESKV-RDE 12/G 10064984 EN_10064984.pdf | 208 Kbytes |
|
