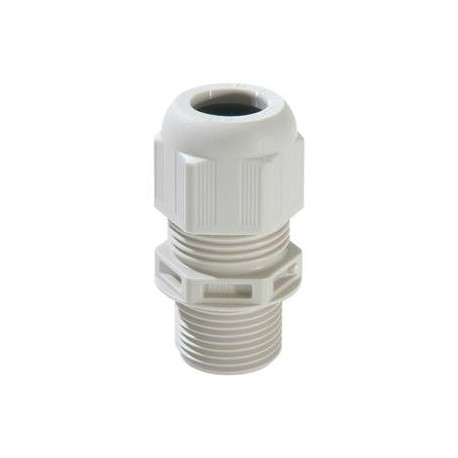

ESKV-L 63 LT/GL 10062762 WISKA PA cable glands, light grey RAL 7035 IP68, -60oC range from 34 to 48mm, long ..
ESKV-L 63 LT/GL
10062762
WISKA
10
PA cable glands, light grey RAL 7035 - IP68, -60oC range from 34 to 48mm, long thread M63

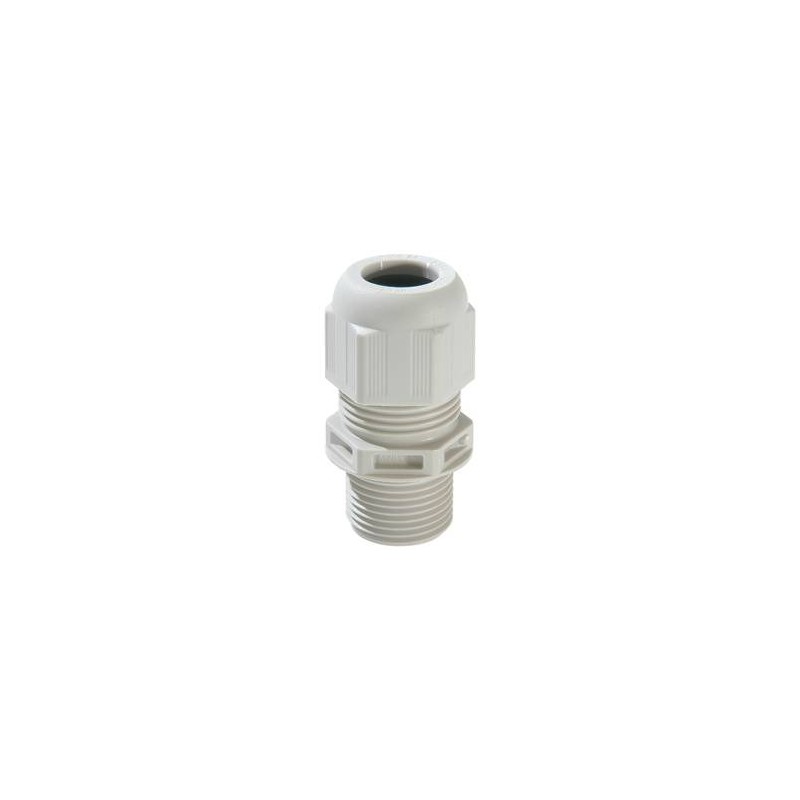

Cable gland LowTemp, polyamide, M63, RAL 7035 with long thread
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | Silicone |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Temp. range min | -60 °C |
| Temp. range max | 100 °C |
| Glow wire test | 750 °C |
| Thread type | M |
| Ø Connection thread D | 63 |
| Lead | 1,5 |
| Length screw-in thread L | 18 mm |
| Ø cable diameter min | 34 mm |
| Ø cable diameter max | 48 mm |
| Key width SW | 68 mm |
| Collar diameter (E) | 75 mm |
| Total length TL | 67 mm - 81 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 30 N m |
| Install. torques cap nut | 30 N m |
| Impact category | 5 |
| Equipment | Incl. connection thread gasket |
| Product Color | RAL 7035 |
| Type | ESKV-L 63 LT |
| Order no. RAL 7035 | 10062762 |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| ESKV-L 63 LT/GL 10062762 EN_10062762.pdf | 254 Kbytes |
|
