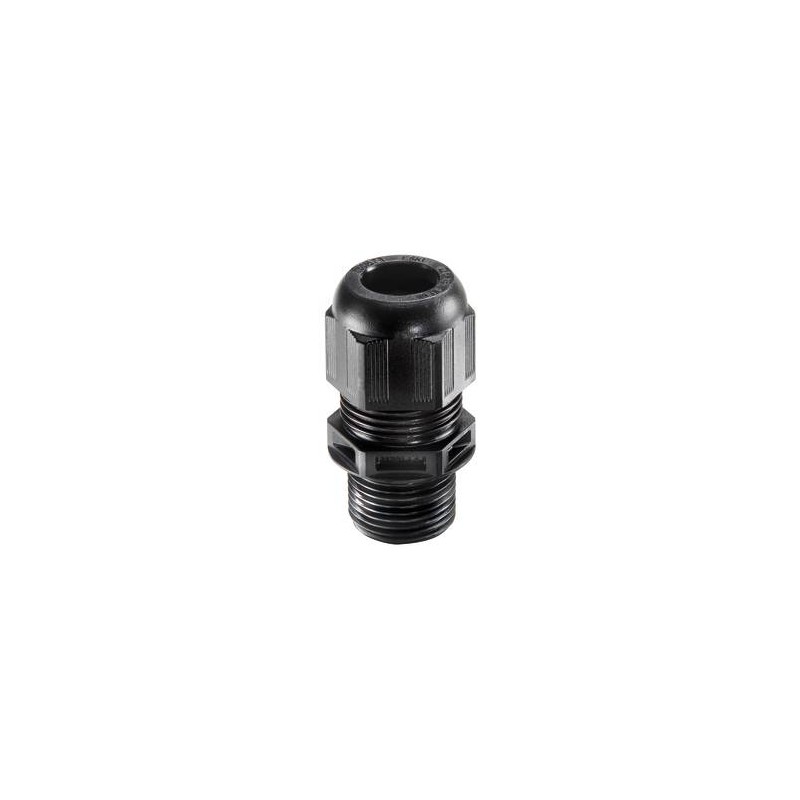

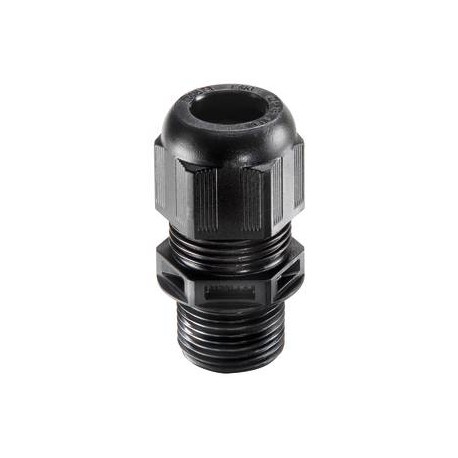

ESKV-L 50 LT/B 10061493 WISKA PA cable glands, black RAL 9005 IP68, -60oC range from 21 to 35mm, long thread..
ESKV-L 50 LT/B
10061493
WISKA
10
PA cable glands, black RAL 9005 - IP68, -60oC range from 21 to 35mm, long thread M50
Cable gland LowTemp, polyamide, M50, RAL 9005 with long thread
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | Silicone |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Temp. range min | -60 °C |
| Temp. range max | 100 °C |
| Glow wire test | 750 °C |
| Thread type | M |
| Ø Connection thread D | 50 |
| Lead | 1,5 |
| Length screw-in thread L | 18 mm |
| Ø cable diameter min | 21 mm |
| Ø cable diameter max | 35 mm |
| Key width SW | 55 mm |
| Collar diameter (E) | 61 mm |
| Total length TL | 63 mm - 76 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 30 N m |
| Install. torques cap nut | 30 N m |
| Impact category | 5 |
| Equipment | Incl. connection thread gasket |
| Product Color | RAL 9005 |
| Type | ESKV-L 50 LT |
| Order no. RAL 9005 | 10061493 |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| ESKV-L 50 LT/B 10061493 EN_10061493.pdf | 432 Kbytes |
|
