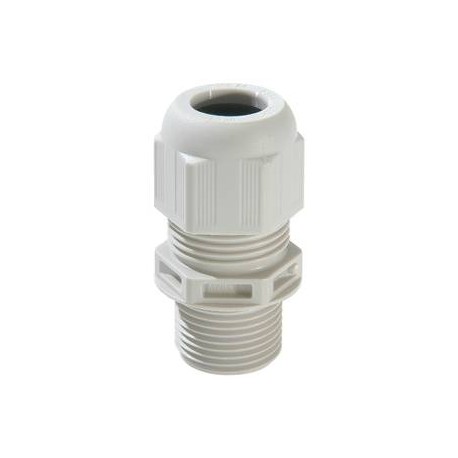

ESKV-L 32 LT/GL 10062759 WISKA PA cable glands, light grey RAL 7035 IP68, -60oC range from 13 to 21mm, long ..
ESKV-L 32 LT/GL
10062759
WISKA
25
PA cable glands, light grey RAL 7035 - IP68, -60oC range from 13 to 21mm, long thread M32

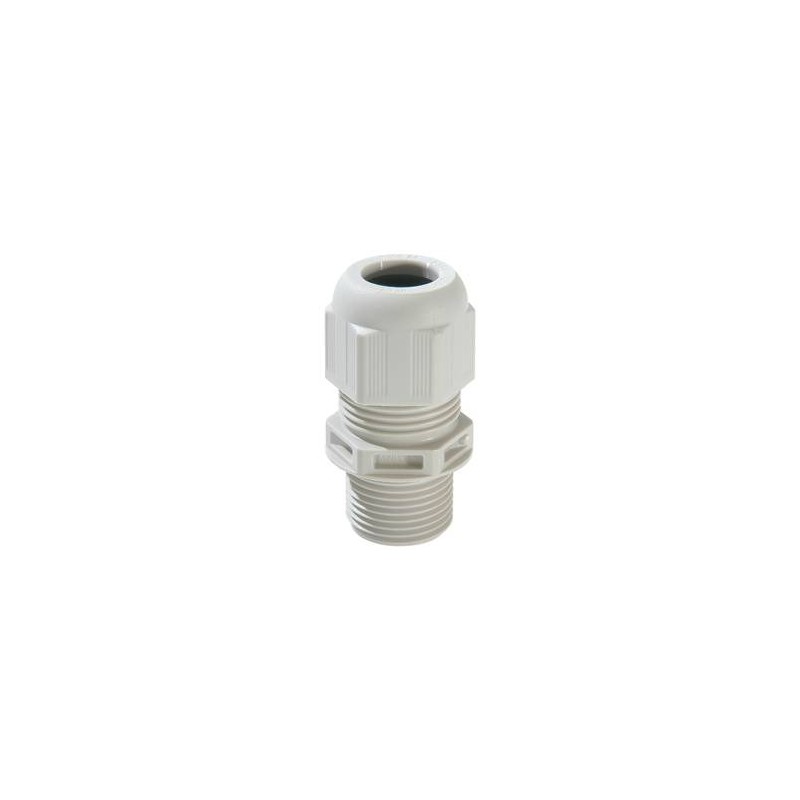

Cable gland LowTemp, polyamide, M32, RAL 7035 with long thread
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | Silicone |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Temp. range min | -60 °C |
| Temp. range max | 100 °C |
| Glow wire test | 750 °C |
| Thread type | M |
| Ø Connection thread D | 32 |
| Lead | 1,5 |
| Length screw-in thread L | 15 mm |
| Ø cable diameter min | 13 mm |
| Ø cable diameter max | 21 mm |
| Key width SW | 36 mm |
| Collar diameter (E) | 40 mm |
| Total length TL | 45 mm - 54 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 15 N m |
| Install. torques cap nut | 4 N m |
| Impact category | 4 |
| Product Color | RAL 7035 |
| Type | ESKV-L 32 LT |
| Order no. RAL 7035 | 10062759 |
| Packing unit | 25 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| ESKV-L 32 LT/GL 10062759 EN_10062759.pdf | 254 Kbytes |
|
