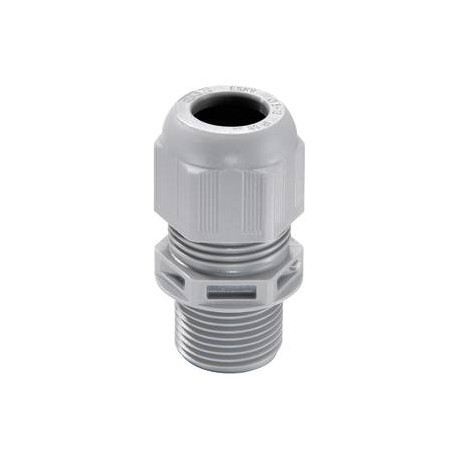

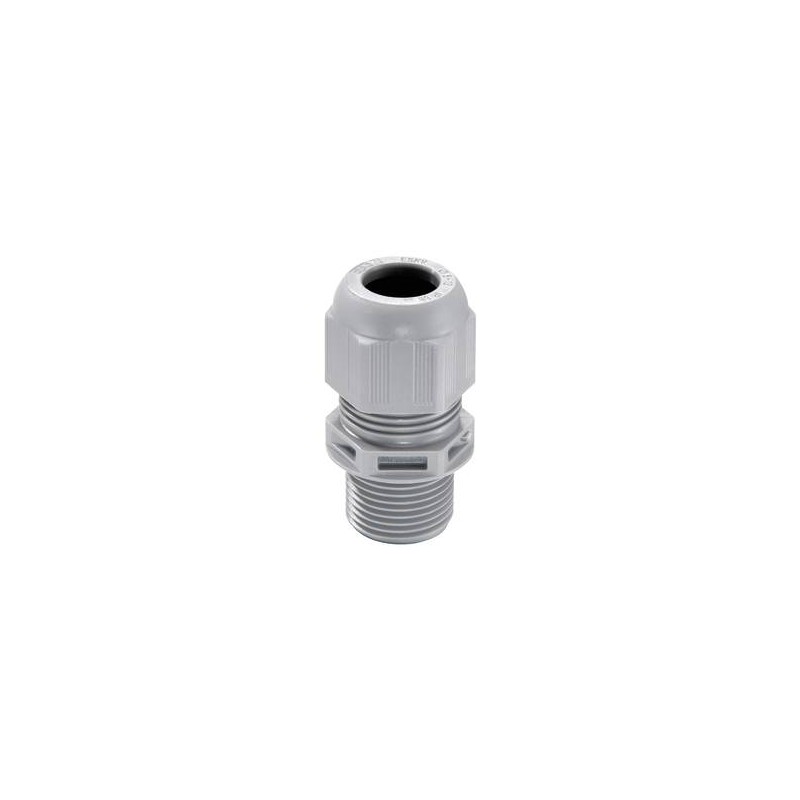

ESKV-L 25/G 10066519 WISKA PA cable glands, dark grey RAL 7001 IP68, range from 9 to 17mm, long thread M25
ESKV-L 25/G
10066519
WISKA
50
PA cable glands, dark grey RAL 7001 - IP68, range from 9 to 17mm, long thread M25
Cable gland, polyamide, M25, RAL 7001 with long thread
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Glow wire test | 750 °C |
| Thread type | M |
| Ø Connection thread D | 25 |
| Lead | 1,5 |
| Length screw-in thread L | 15 mm |
| Ø cable diameter min | 9 mm |
| Ø cable diameter max | 17 mm |
| Ø cable diameter UL | 10,8 mm - 15,8 mm |
| Key width SW | 29 mm |
| Collar diameter (E) | 32 mm |
| Total length TL | 43 mm - 52 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 10 N m |
| Install. torques cap nut | 4 N m |
| Impact category | 4 |
| Product Color | RAL 7001 |
| Type | ESKV-L 25 |
| Order no. RAL 7001 | 10066519 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| ESKV-L 25/G 10066519 EN_10066519.pdf | 329 Kbytes |
|
