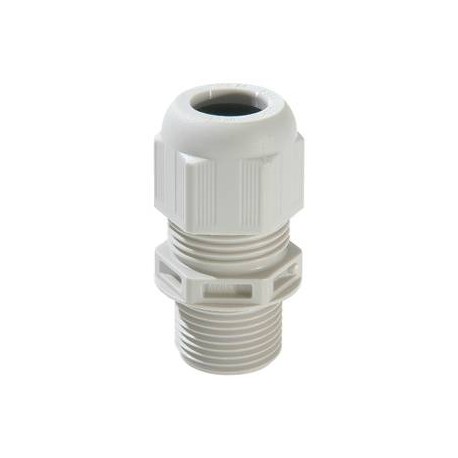

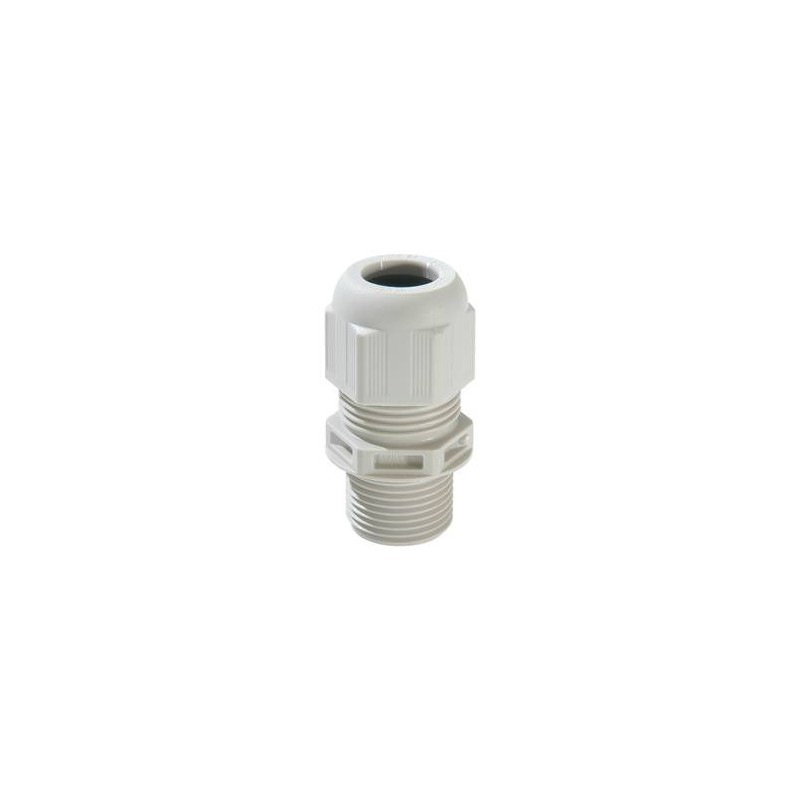

ESKV-L 20/GL 10066392 WISKA PA cable glands, light grey RAL 7035 IP68, range from 6 to 13mm, long thread M20
ESKV-L 20/GL
10066392
WISKA
50
PA cable glands, light grey RAL 7035 - IP68, range from 6 to 13mm, long thread M20
Cable gland, polyamide, M20, RAL 7035 with long thread
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Glow wire test | 750 °C |
| Thread type | M |
| Ø Connection thread D | 20 |
| Lead | 1,5 |
| Length screw-in thread L | 15 mm |
| Ø cable diameter min | 6 mm |
| Ø cable diameter max | 13 mm |
| Ø cable diameter UL | 7,5 mm - 11,3 mm |
| Key width SW | 24 mm |
| Collar diameter (E) | 27 mm |
| Total length TL | 41 mm - 50 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 4 N m |
| Install. torques cap nut | 3 N m |
| Impact category | 3 |
| Product Color | RAL 7035 |
| Type | ESKV-L 20 |
| Order no. RAL 7035 | 10066392 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| ESKV-L 20/GL 10066392 EN_10066392.pdf | 269 Kbytes |
|
