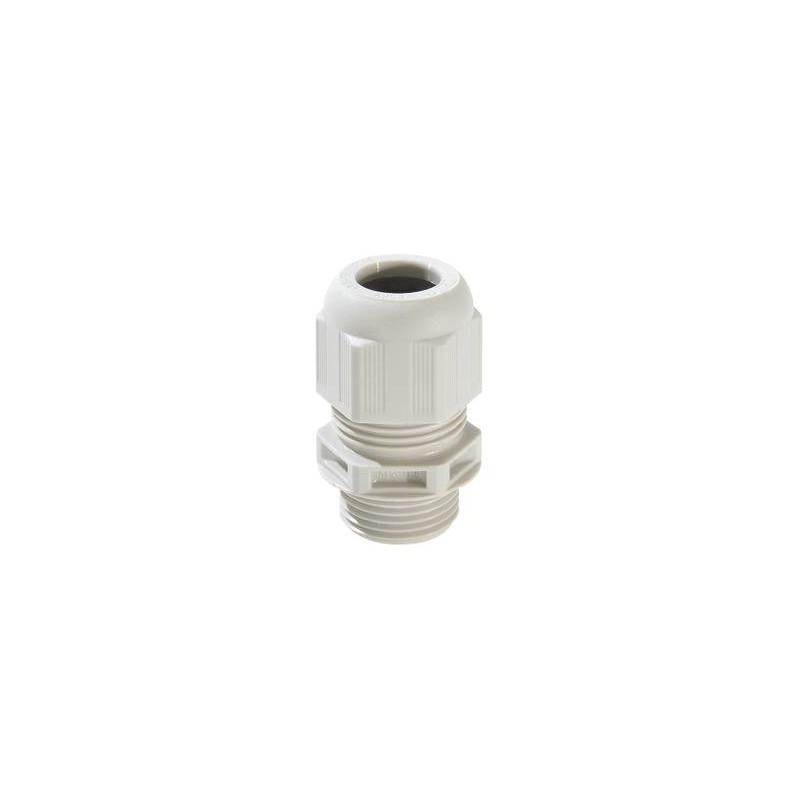

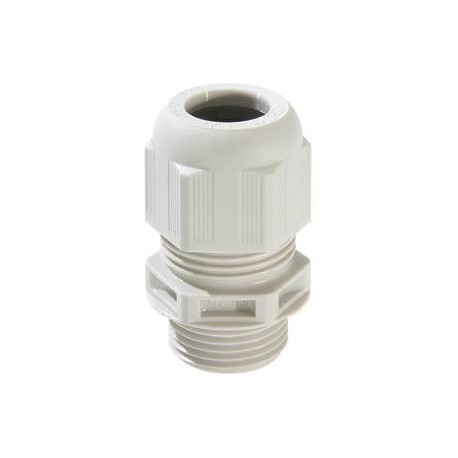

ESKV 32/GL RW 10105496 WISKA PA cable glands, light grey RAL 7035 IP68, range from 13 to 21mm, thread M32, E..
ESKV 32/GL RW
10105496
WISKA
25
PA cable glands, light grey RAL 7035 - IP68, range from 13 to 21mm, thread M32, EN 45545
Railway cable gland, polyamide M32, RAL 7035 with short thread
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | polyamide UL94-V0 |
| Hazard level EN acc. 45545 | R22=HL3 / R23=HL3 / R24=HL3 |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Glow wire test | 960 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Product Color | RAL 7035 |
| Thread type | M |
| Ø Connection thread D | 32 |
| Lead | 1,5 |
| Length screw-in thread L | 12 mm |
| Ø cable diameter min | 13 mm |
| Ø cable diameter max | 21 mm |
| Ø cable diameter UL | 14,6 mm - 19,5 mm |
| Key width SW | 36 mm |
| Collar diameter (E) | 40 mm |
| Total length TL | 42 mm - 51 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 15 N m |
| Impact category | 4 |
| Install. torques cap nut | 4 N m |
| Order no. RAL 7035 | 10105496 |
| Type | ESKV 32 RW |
| Packing unit | 25 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| ESKV 32/GL RW 10105496 EN_10105496.pdf | 283 Kbytes |
|
