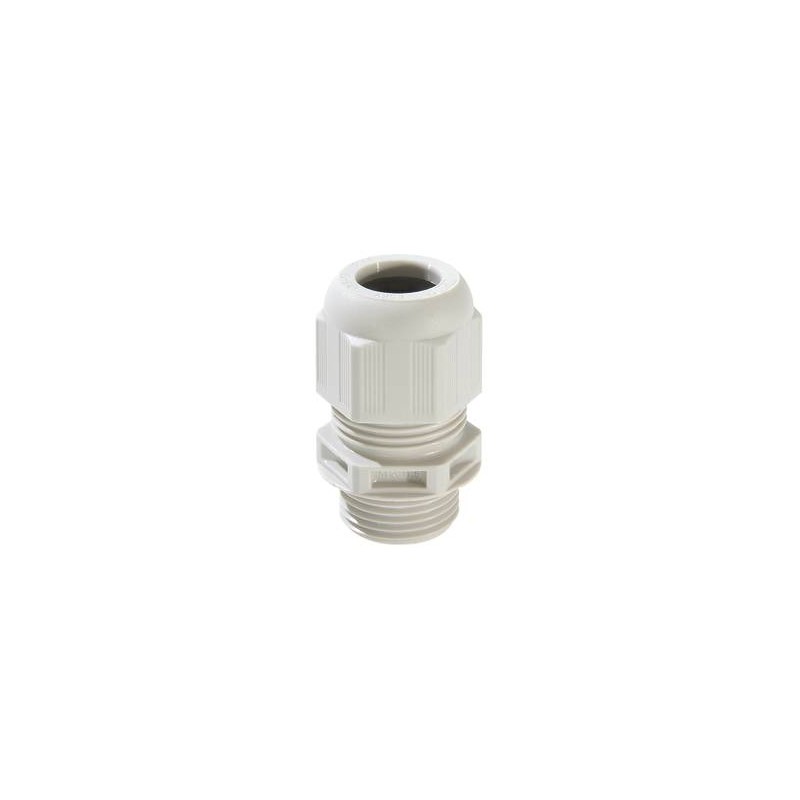

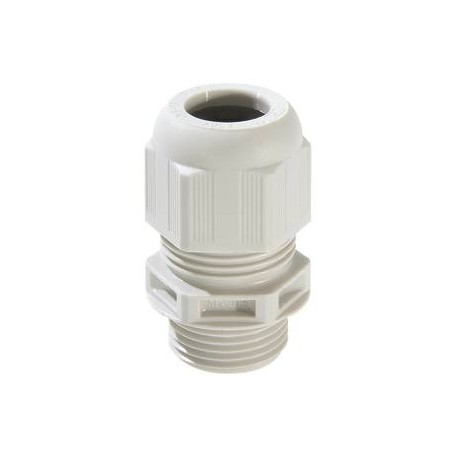

ESKV 12/GL RW 10105492 WISKA PA cable glands, light grey RAL 7035 IP68, range from 3 to 7mm, thread M12, EN ..
ESKV 12/GL RW
10105492
WISKA
50
PA cable glands, light grey RAL 7035 - IP68, range from 3 to 7mm, thread M12, EN 45545
Railway cable gland, polyamide M12, RAL 7035 with short thread
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | polyamide UL94-V0 |
| Hazard level EN acc. 45545 | R22=HL3 / R23=HL3 / R24=HL3 |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Glow wire test | 960 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Product Color | RAL 7035 |
| Thread type | M |
| Ø Connection thread D | 12 |
| Lead | 1,5 |
| Length screw-in thread L | 9 mm |
| Ø cable diameter min | 3 mm |
| Ø cable diameter max | 7 mm |
| Ø cable diameter UL | 4,1 mm - 6 mm |
| Key width SW | 16 mm |
| Collar diameter (E) | 18 mm |
| Total length TL | 29 mm - 34 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 2 N m |
| Impact category | 2 |
| Install. torques cap nut | 2 N m |
| Order no. RAL 7035 | 10105492 |
| Type | ESKV 12 RW |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| ESKV 12/GL RW 10105492 EN_10105492.pdf | 282 Kbytes |
|
