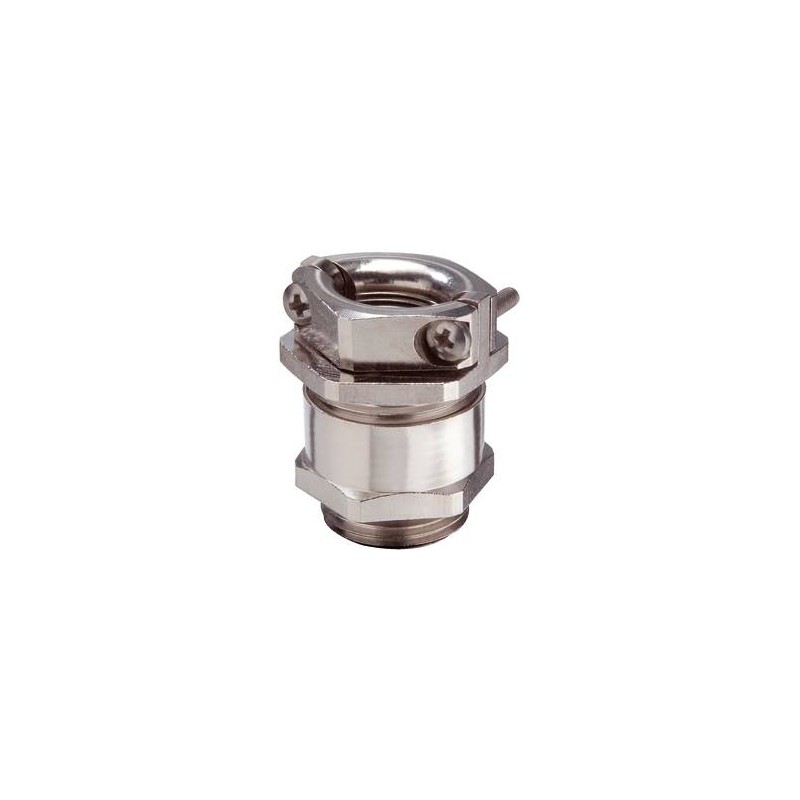

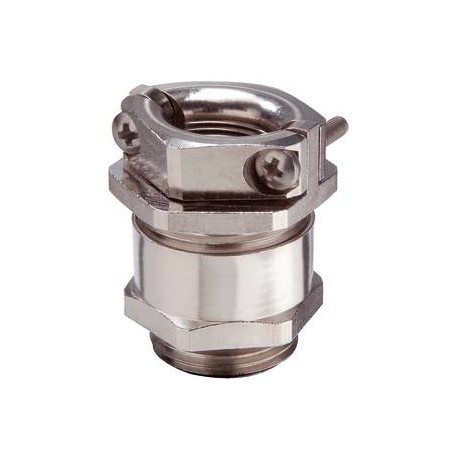

ESKMKV 63 10063139 WISKA Metal hexagonal cable glands + IP54 flange clamping, 34 to 48mm range, M63 thread
ESKMKV 63
10063139
WISKA
5
Metal hexagonal cable glands + IP54 flange clamping, 34 to 48mm range, M63 thread
Cable gland hexagonal, brass nickel-plated, M63, external strain relief
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | Soft rubber |
| Temp. range min | -30 °C |
| Temp. range max | 80 °C |
| Protection class | IP54 |
| Thread type | M |
| Ø Connection thread D | 63 |
| Lead | 1,5 |
| Length screw-in thread L | 10 mm |
| Ø cable diameter min | 35 mm |
| Ø cable diameter max | 46 mm |
| Key width SW1 | 64 mm |
| Key width SW2 | 66 mm |
| Collar diameter E1 | 70 mm |
| Collar diameter E2 | 70 mm |
| Total length TL | 53 mm |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10063139 |
| Type | ESKMKV 63 |
| Packing unit | 5 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| ESKMKV 63 10063139 EN_10063139.pdf | 277 Kbytes |
|
