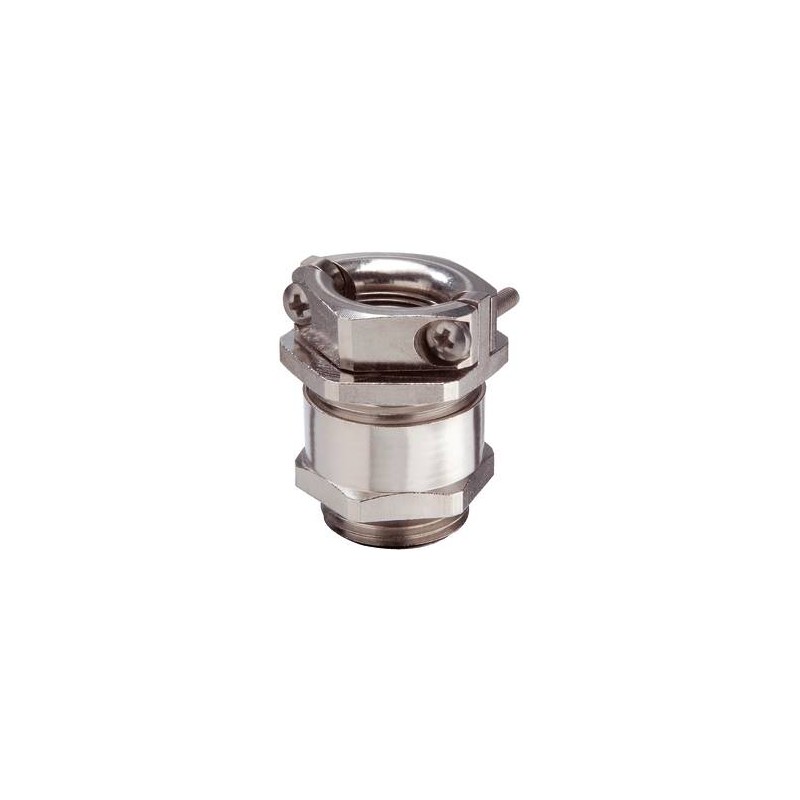

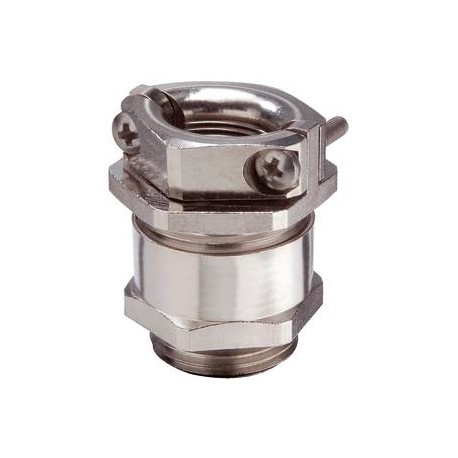

ESKMKV 32 10063136 WISKA Metal hexagonal cable glands + IP54 flange clamping, 17 to 28mm range, M32 thread
ESKMKV 32
10063136
WISKA
50
Metal hexagonal cable glands + IP54 flange clamping, 17 to 28mm range, M32 thread
Cable gland hexagonal, brass nickel-plated, M32, external strain relief
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | Soft rubber |
| Temp. range min | -30 °C |
| Temp. range max | 80 °C |
| Protection class | IP54 |
| Thread type | M |
| Ø Connection thread D | 32 |
| Lead | 1,5 |
| Length screw-in thread L | 8 mm |
| Ø cable diameter min | 17 mm |
| Ø cable diameter max | 28 mm |
| Key width SW1 | 42 mm |
| Key width SW2 | 40 mm |
| Collar diameter E1 | 47 mm |
| Collar diameter E2 | 44 mm |
| Total length TL | 43 mm |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10063136 |
| Type | ESKMKV 32 |
| Packing unit | 25 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| ESKMKV 32 10063136 EN_10063136.pdf | 276 Kbytes |
|
