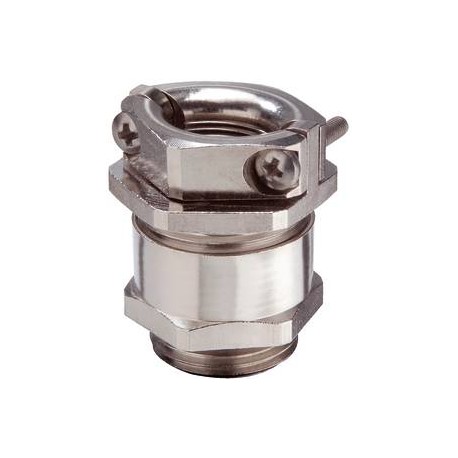

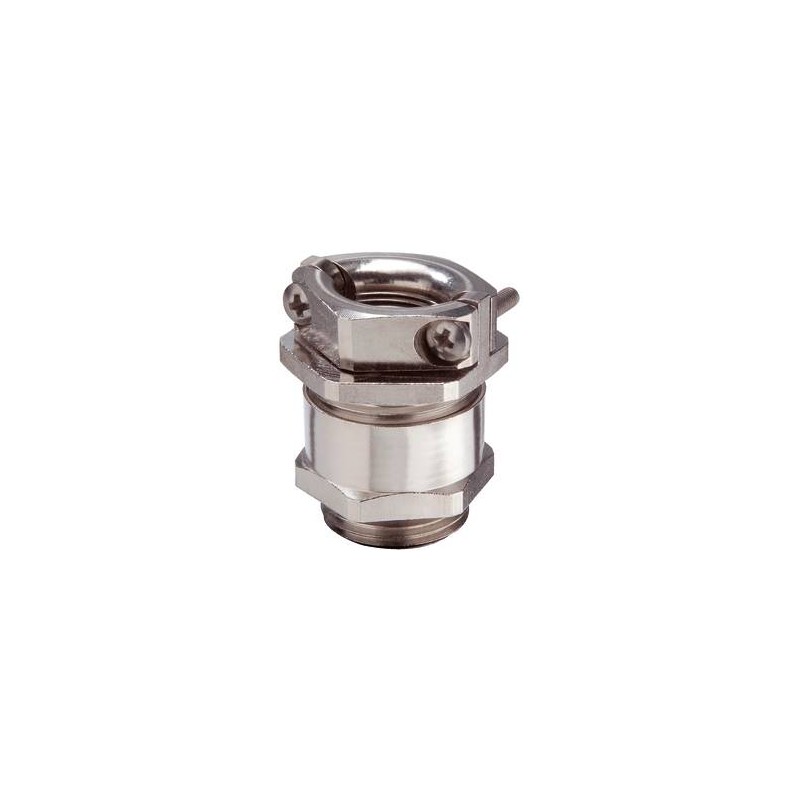

ESKMKV 16 10063132 WISKA Metal hexagonal cable glands + IP54 flange clamping, 4 to 11mm range, M16 thread
ESKMKV 16
10063132
WISKA
50
Metal hexagonal cable glands + IP54 flange clamping, 4 to 11mm range, M16 thread
Cable gland hexagonal, brass nickel-plated, M16, external strain relief
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | Soft rubber |
| Temp. range min | -30 °C |
| Temp. range max | 80 °C |
| Protection class | IP54 |
| Thread type | M |
| Ø Connection thread D | 16 |
| Lead | 1,5 |
| Length screw-in thread L | 5 mm |
| Ø cable diameter min | 4 mm |
| Ø cable diameter max | 11 mm |
| Key width SW1 | 19 mm |
| Key width SW2 | 18 mm |
| Collar diameter E1 | 21 mm |
| Collar diameter E2 | 20 mm |
| Total length TL | 28 mm |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10063132 |
| Type | ESKMKV 16 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| ESKMKV 16 10063132 EN_10063132.pdf | 276 Kbytes |
|
