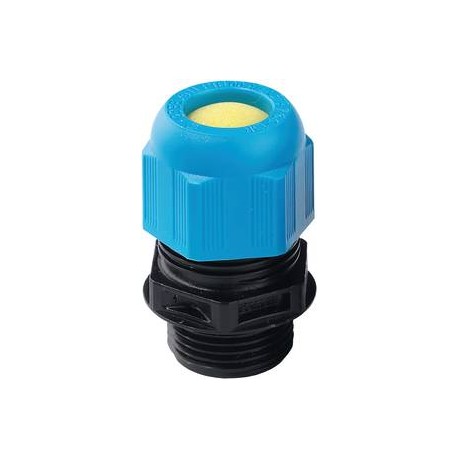

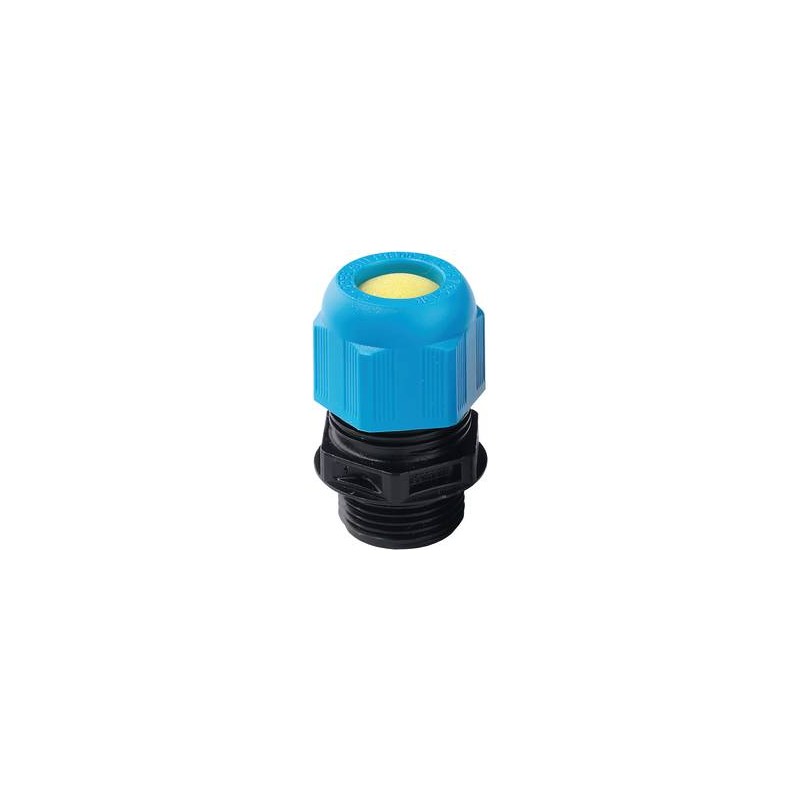

ESKE/1-i 40 10103376 WISKA Blue PA cable glands "ATEX" IP68, intrinsic safety, range from 17 to 28mm, thread..
ESKE/1-i 40
10103376
WISKA
10
Blue PA cable glands "ATEX" IP68, intrinsic safety, range from 17 to 28mm, thread M40
Ex-cable gland, polyamide with short thread, RAL 9005/5012, M40
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | IECEx, ATEX |
| Glow wire test | 750 °C |
| Thread type | M |
| Ø Connection thread D | 40 |
| Lead | 1,5 |
| Length screw-in thread L | 12 mm |
| Ø cable diameter min | 17 mm |
| Ø cable diameter max | 28 mm |
| Key width SW | 46 mm |
| Collar diameter (E) | 51 mm |
| Total length TL | 52 mm - 65 mm |
| Install. torques fitting | 11 N m |
| Install. torques cap nut | 10 N m |
| Equipment | Incl. connection thread gasket |
| Product Color | RAL 5012 / RAL 9005 |
| Order no. RAL 9005 | 10103376 |
| Type | ESKE/1-i 40 |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| ESKE/1-i 40 10103376 EN_10103376.pdf | 351 Kbytes |
|
