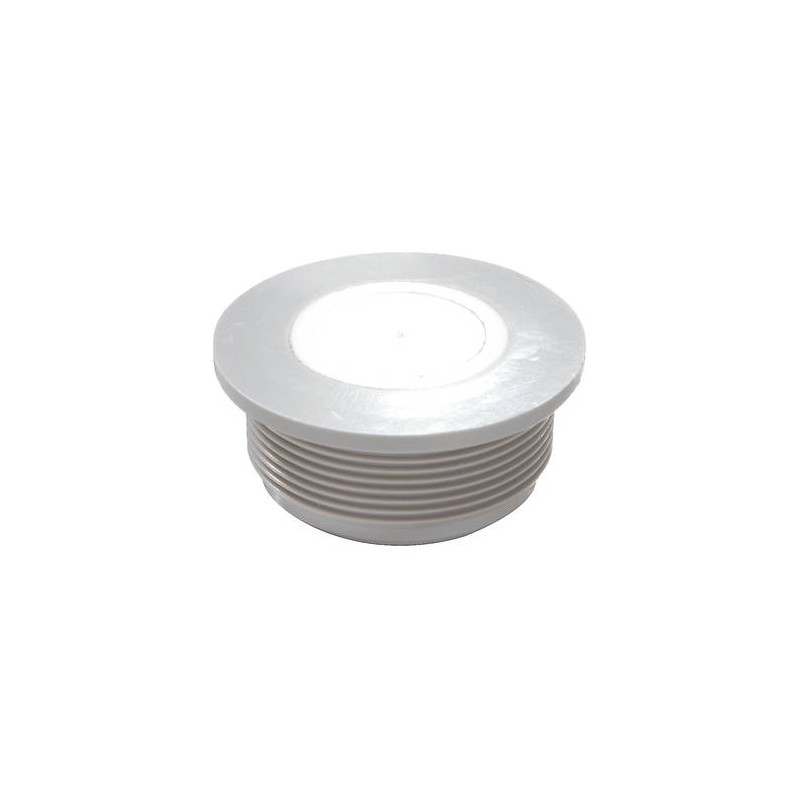

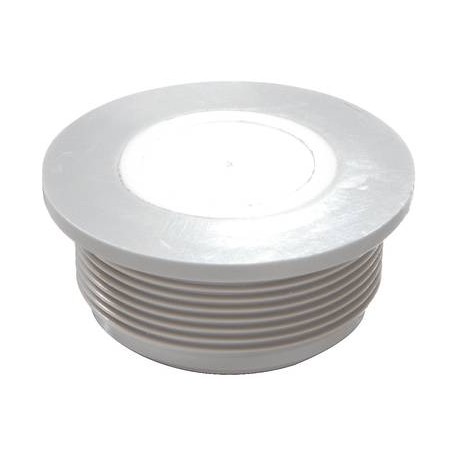

EMT 25 10062561 WISKA Blind stopper, cable inlet membrane, light grey polyethylene, M25 thread
EMT 25
10062561
WISKA
100
Blind stopper, cable inlet membrane, light grey polyethylene, M25 thread
Membrane spout, TPE, RAL 7035, M25
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Thermoplastic elastomer |
| Temp. range min | -40 °C |
| Temp. range max | 80 °C |
| Glow wire test | 750 °C |
| Protection class | IP66 |
| Ø Connection thread D | 25 |
| Length screw-in thread L | 9,5 mm |
| Ø cable diameter min | 1 mm |
| Ø cable diameter max | 18 mm |
| External diameter ED | 30 mm |
| Total length TL | 11 mm |
| Ø Drilling | 25,5 mm |
| Wall thickness S | 2 mm |
| Product Color | RAL 7035 |
| Order no. RAL 7035 | 10062561 |
| Type | EMT 25 |
| Packing unit | 100 |
| ETIM-Classification | EC000451 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMT 25 10062561 EN_10062561.pdf | 181 Kbytes |
|
