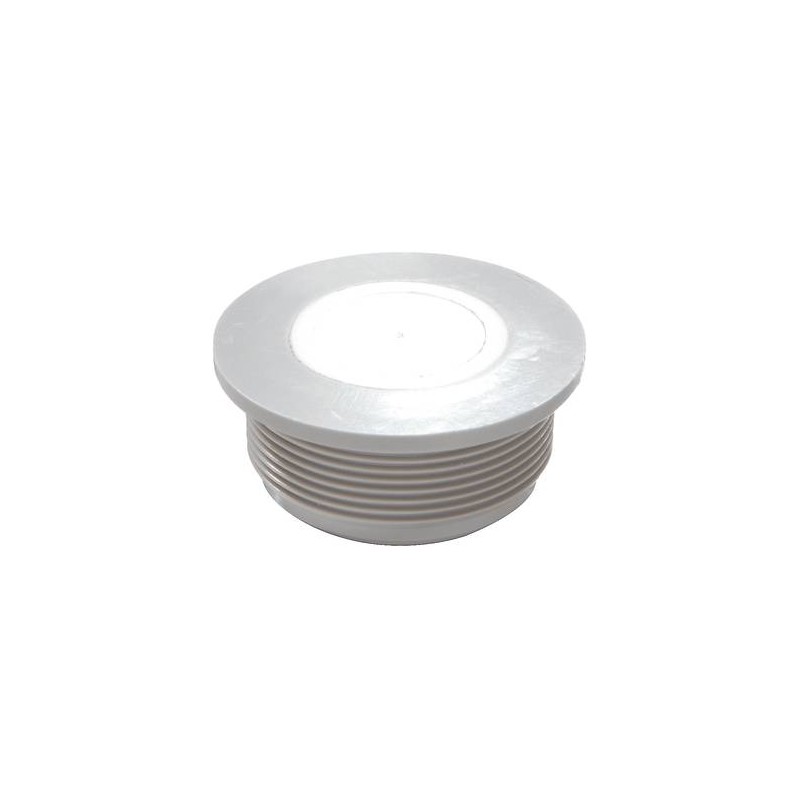

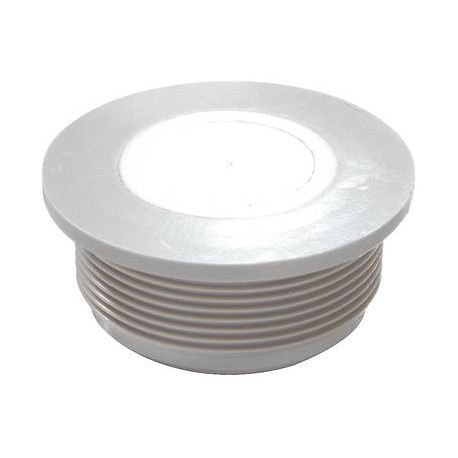

EMT 20 10062560 WISKA Blind stopper, cable inlet membrane, light grey polyethylene, M20 thread
EMT 20
10062560
WISKA
100
Blind stopper, cable inlet membrane, light grey polyethylene, M20 thread
Membrane spout, TPE, RAL 7035, M20
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Thermoplastic elastomer |
| Temp. range min | -40 °C |
| Temp. range max | 80 °C |
| Glow wire test | 750 °C |
| Protection class | IP66 |
| Ø Connection thread D | 20 |
| Length screw-in thread L | 9,5 mm |
| Ø cable diameter min | 1 mm |
| Ø cable diameter max | 13 mm |
| External diameter ED | 25 mm |
| Total length TL | 11 mm |
| Ø Drilling | 20,5 mm |
| Wall thickness S | 2 mm |
| Product Color | RAL 7035 |
| Order no. RAL 7035 | 10062560 |
| Type | EMT 20 |
| Packing unit | 100 |
| ETIM-Classification | EC000451 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMT 20 10062560 EN_10062560.pdf | 181 Kbytes |
|
