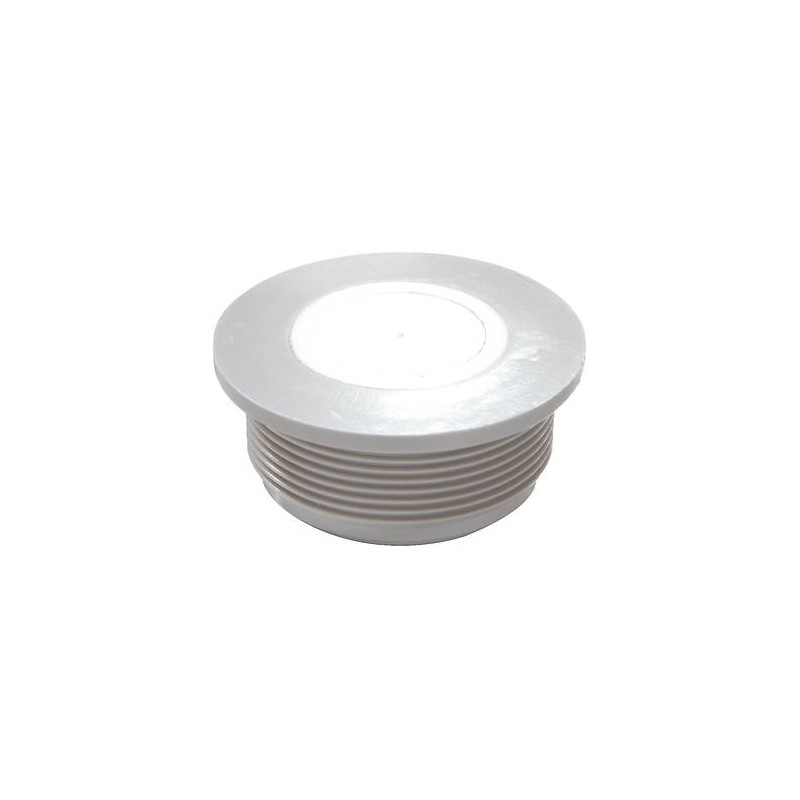

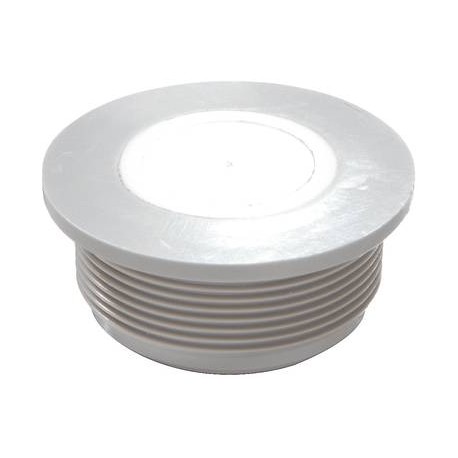

EMT 16 10062559 WISKA Blind stopper, cable inlet membrane, light grey polyethylene, M16 thread
EMT 16
10062559
WISKA
100
Blind stopper, cable inlet membrane, light grey polyethylene, M16 thread
Membrane spout, TPE, RAL 7035, M16
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Thermoplastic elastomer |
| Temp. range min | -40 °C |
| Temp. range max | 80 °C |
| Glow wire test | 750 °C |
| Protection class | IP66 |
| Ø Connection thread D | 16 |
| Length screw-in thread L | 9,5 mm |
| Ø cable diameter min | 1 mm |
| Ø cable diameter max | 9 mm |
| External diameter ED | 21 mm |
| Total length TL | 11 mm |
| Ø Drilling | 16,5 mm |
| Wall thickness S | 2 mm |
| Product Color | RAL 7035 |
| Order no. RAL 7035 | 10062559 |
| Type | EMT 16 |
| Packing unit | 100 |
| ETIM-Classification | EC000451 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMT 16 10062559 EN_10062559.pdf | 181 Kbytes |
|
