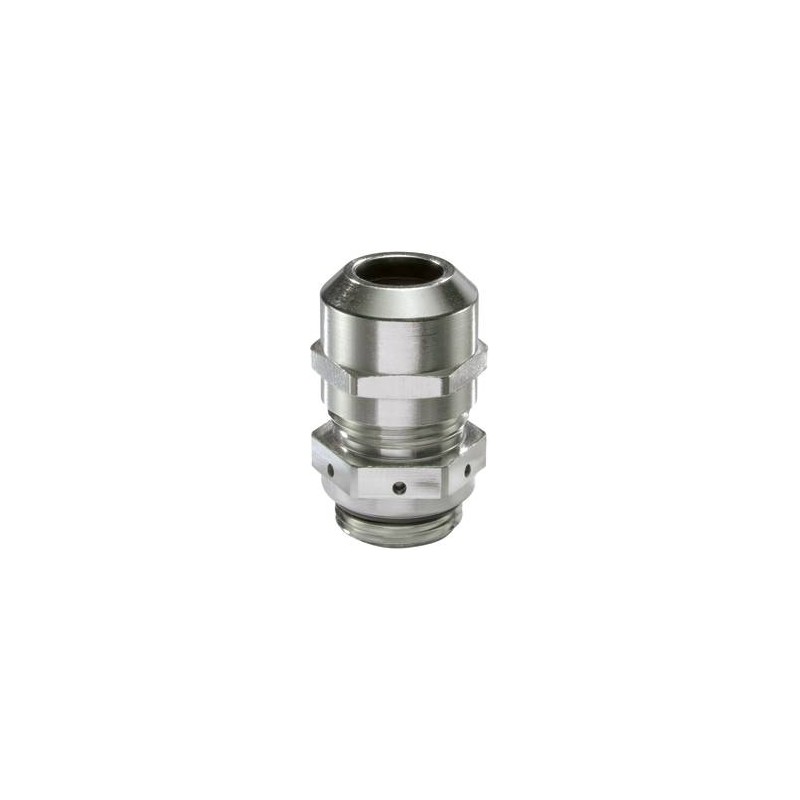

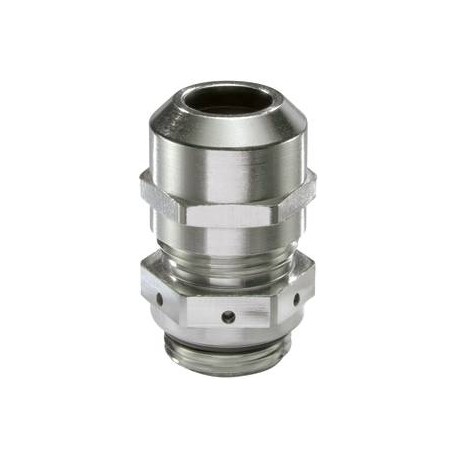

EMSVG 63 10065905 WISKA Metal VentGLAND cable glands, IP69K, range 34 to 48mm, M63 thread
EMSVG 63
10065905
WISKA
Metal VentGLAND cable glands, IP69K, range 34 to 48mm, M63 thread
Pressure compensation cable gland, brass nickel-plated, M63
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material membrane | ePTFE |
| Material sealing gasket | EPDM |
| Airflow at 70mbar | 285 l/h |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 / IP69 |
| Thread type | M |
| Ø Connection thread D | 63 |
| Lead | 1,5 |
| Length screw-in thread L | 10 mm |
| Ø cable diameter min | 34 mm |
| Ø cable diameter max | 48 mm |
| Ø cable diameter UL | 38,1 mm - 47,5 mm |
| Key width SW | 68 mm |
| Collar diameter (E) | 75 mm |
| Install. torques fitting | 40 N m |
| Install. torques cap nut | 40 N m |
| Total length TL | 69 mm - 83 mm |
| Order no. nickel-plated | 10065905 |
| Type | EMSVG 63 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMSVG 63 10065905 EN_10065905.pdf | 327 Kbytes |
|
