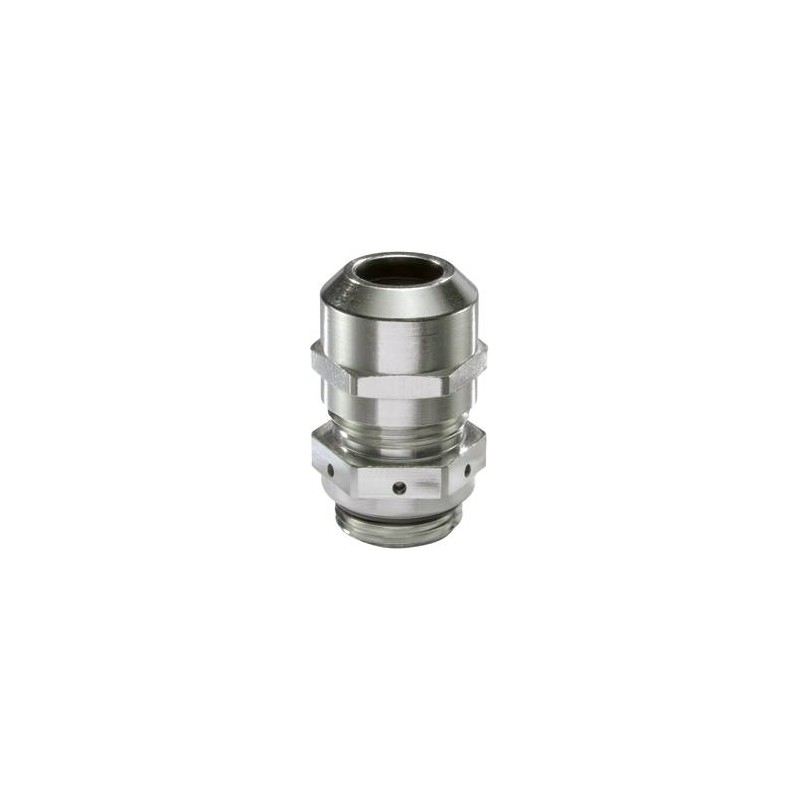

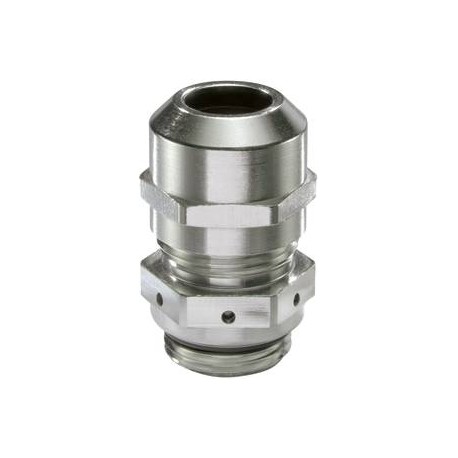

EMSVG 50 10065904 WISKA Metal VentGLAND cable glands, IP69K, range 21 to 35mm, M50 thread
EMSVG 50
10065904
WISKA
Metal VentGLAND cable glands, IP69K, range 21 to 35mm, M50 thread
Pressure compensation cable gland, brass nickel-plated, M50
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material membrane | ePTFE |
| Material sealing gasket | EPDM |
| Airflow at 70mbar | 225 l/h |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 / IP69 |
| Thread type | M |
| Ø Connection thread D | 50 |
| Lead | 1,5 |
| Length screw-in thread L | 9 mm |
| Ø cable diameter min | 21 mm |
| Ø cable diameter max | 35 mm |
| Ø cable diameter UL | 24,3 mm - 33,4 mm |
| Key width SW | 55 mm |
| Collar diameter (E) | 61 mm |
| Install. torques fitting | 30 N m |
| Install. torques cap nut | 30 N m |
| Total length TL | 64 mm - 77 mm |
| Order no. nickel-plated | 10065904 |
| Type | EMSVG 50 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMSVG 50 10065904 EN_10065904.pdf | 327 Kbytes |
|
