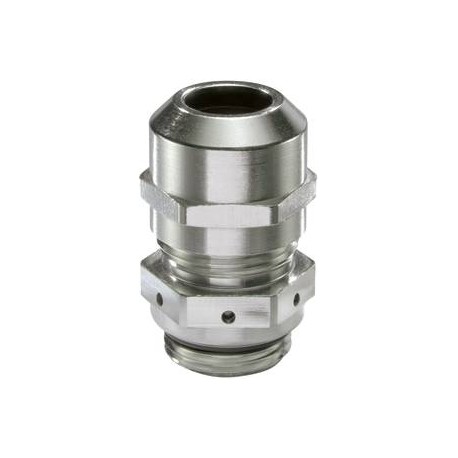

EMSVG 40 10065903 WISKA Metal VentGLAND cable glands, IP69K, range from 16 to 28mm, M40 thread
EMSVG 40
10065903
WISKA
Metal VentGLAND cable glands, IP69K, range from 16 to 28mm, M40 thread
Pressure compensation cable gland, brass nickel-plated, M40
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material membrane | ePTFE |
| Material sealing gasket | EPDM |
| Airflow at 70mbar | 150 l/h |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 / IP69 |
| Thread type | M |
| Ø Connection thread D | 40 |
| Lead | 1,5 |
| Length screw-in thread L | 8 mm |
| Ø cable diameter min | 16 mm |
| Ø cable diameter max | 28 mm |
| Ø cable diameter UL | 17,4 mm - 26,4 mm |
| Key width SW | 46 mm |
| Collar diameter (E) | 51 mm |
| Install. torques fitting | 20 N m |
| Install. torques cap nut | 20 N m |
| Total length TL | 57 mm - 70 mm |
| Order no. nickel-plated | 10065903 |
| Type | EMSVG 40 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMSVG 40 10065903 EN_10065903.pdf | 327 Kbytes |
|
