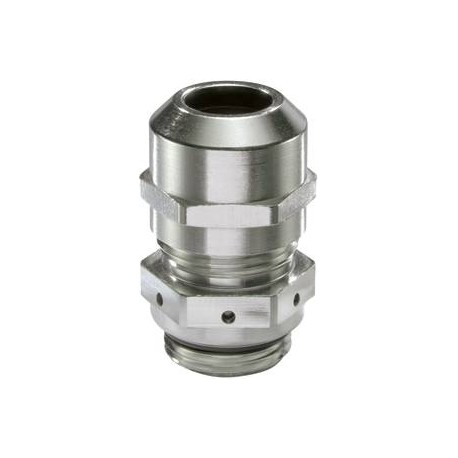

EMSVG 25 10065901 WISKA Metal VentGLAND cable glands, IP69K, range from 9 to 17mm, M25 thread
EMSVG 25
10065901
WISKA
Metal VentGLAND cable glands, IP69K, range from 9 to 17mm, M25 thread

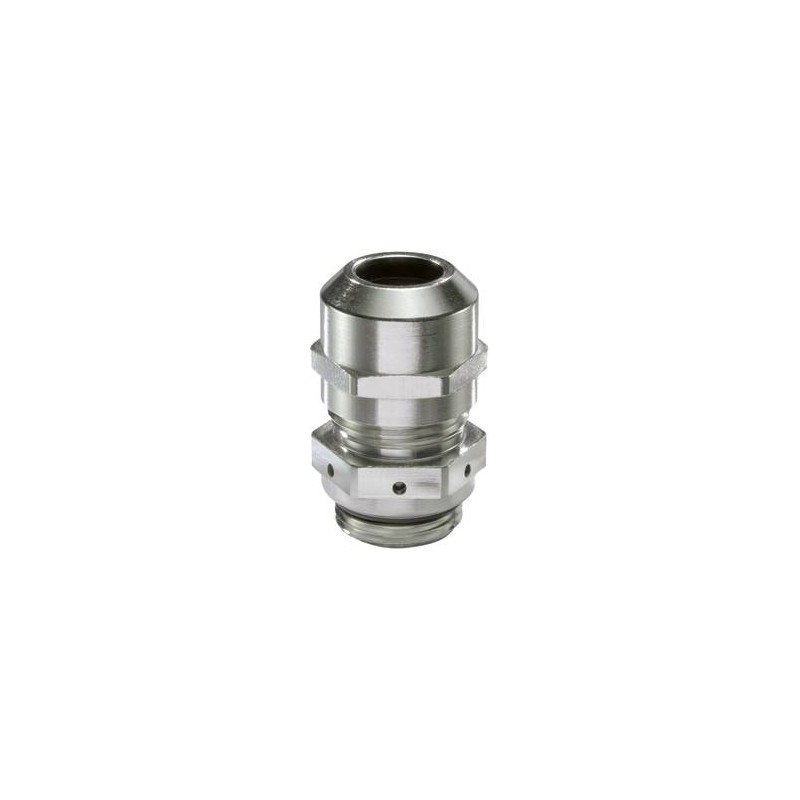

Pressure compensation cable gland, brass nickel-plated, M25
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material membrane | ePTFE |
| Material sealing gasket | EPDM |
| Airflow at 70mbar | 90 l/h |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 / IP69 |
| Thread type | M |
| Ø Connection thread D | 25 |
| Lead | 1,5 |
| Length screw-in thread L | 7 mm |
| Ø cable diameter min | 9 mm |
| Ø cable diameter max | 17 mm |
| Ø cable diameter UL | 10,8 mm - 15,8 mm |
| Key width SW | 29 mm |
| Collar diameter (E) | 32 mm |
| Install. torques fitting | 10 N m |
| Install. torques cap nut | 10 N m |
| Total length TL | 43 mm - 52 mm |
| Order no. nickel-plated | 10065901 |
| Type | EMSVG 25 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMSVG 25 10065901 EN_10065901.pdf | 327 Kbytes |
|
