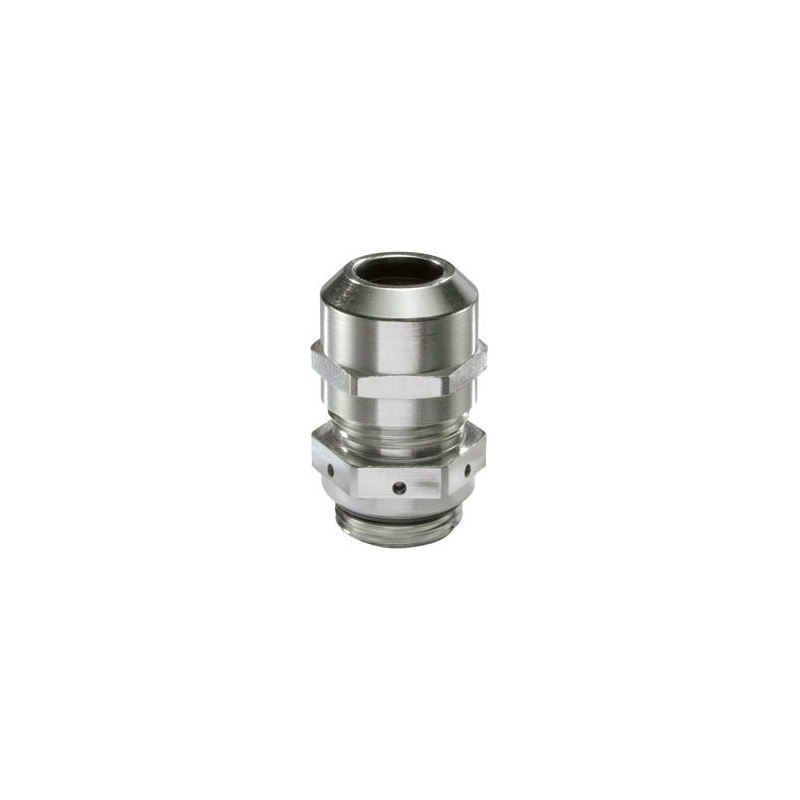

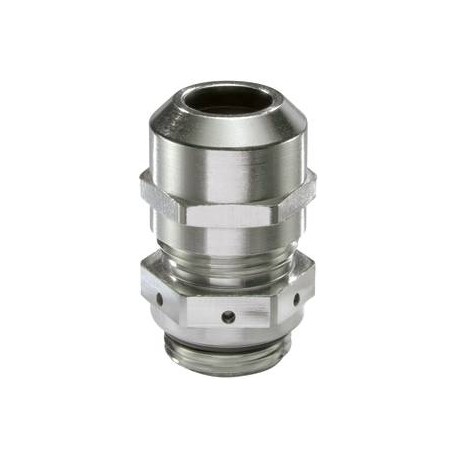

EMSVG 20 10065900 WISKA Metal VentGLAND cable glands, IP69K, range 6 to 13mm, M20 thread
EMSVG 20
10065900
WISKA
Metal VentGLAND cable glands, IP69K, range 6 to 13mm, M20 thread
Pressure compensation cable gland, brass nickel-plated, M20
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material membrane | ePTFE |
| Material sealing gasket | EPDM |
| Airflow at 70mbar | 55 l/h |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 / IP69 |
| Thread type | M |
| Ø Connection thread D | 20 |
| Lead | 1,5 |
| Length screw-in thread L | 6 mm |
| Ø cable diameter min | 6 mm |
| Ø cable diameter max | 13 mm |
| Ø cable diameter UL | 7,5 mm - 11,3 mm |
| Key width SW | 24 mm |
| Collar diameter (E) | 27 mm |
| Install. torques fitting | 8 N m |
| Install. torques cap nut | 8 N m |
| Total length TL | 41 mm - 50 mm |
| Order no. nickel-plated | 10065900 |
| Type | EMSVG 20 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMSVG 20 10065900 EN_10065900.pdf | 326 Kbytes |
|
