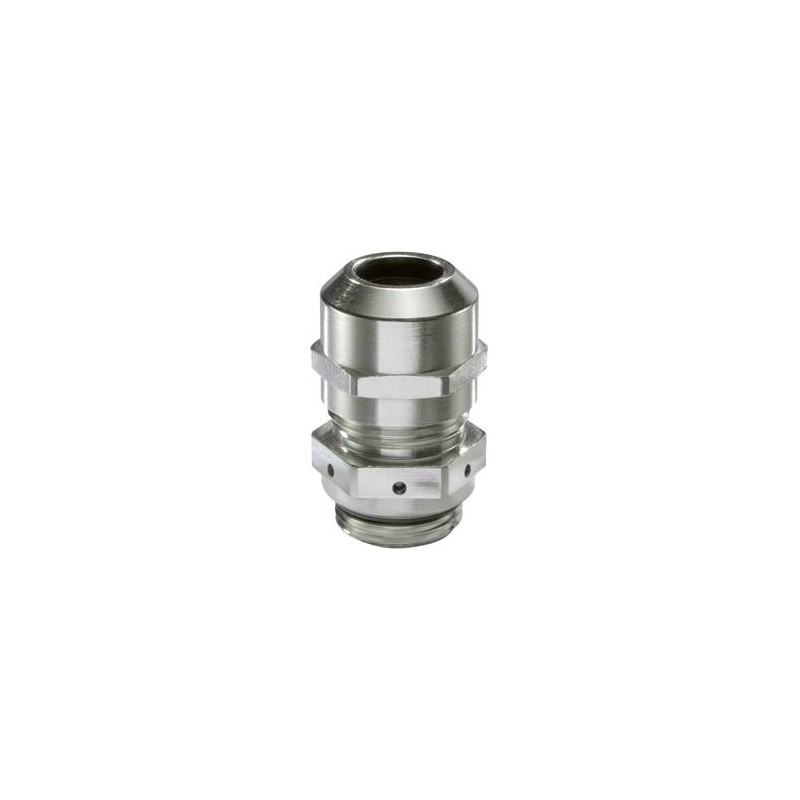

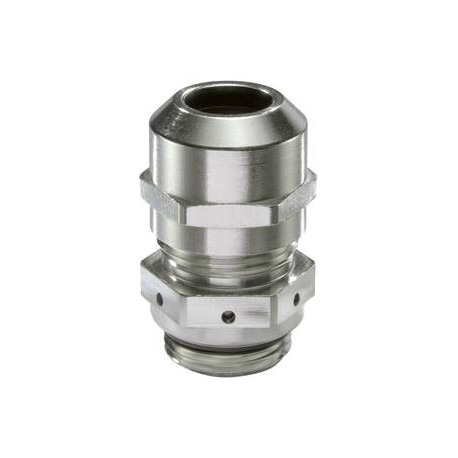

EMSVG 16 10065899 WISKA Metal VentGLAND cable glands, IP69K, 4.5 to 10mm range, M16 thread
EMSVG 16
10065899
WISKA
Metal VentGLAND cable glands, IP69K, 4.5 to 10mm range, M16 thread
Pressure compensation cable gland, brass nickel-plated, M16
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material membrane | ePTFE |
| Material sealing gasket | EPDM |
| Airflow at 70mbar | 52 l/h |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 / IP69 |
| Thread type | M |
| Ø Connection thread D | 16 |
| Lead | 1,5 |
| Length screw-in thread L | 6 mm |
| Ø cable diameter min | 4,5 mm |
| Ø cable diameter max | 10 mm |
| Key width SW | 20 mm |
| Collar diameter (E) | 22 mm |
| Install. torques fitting | 4 N m |
| Install. torques cap nut | 4 N m |
| Impact category | 2 |
| Total length TL | 34 mm - 42 mm |
| Order no. nickel-plated | 10065899 |
| Type | EMSVG 16 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMSVG 16 10065899 EN_10065899.pdf | 318 Kbytes |
|
