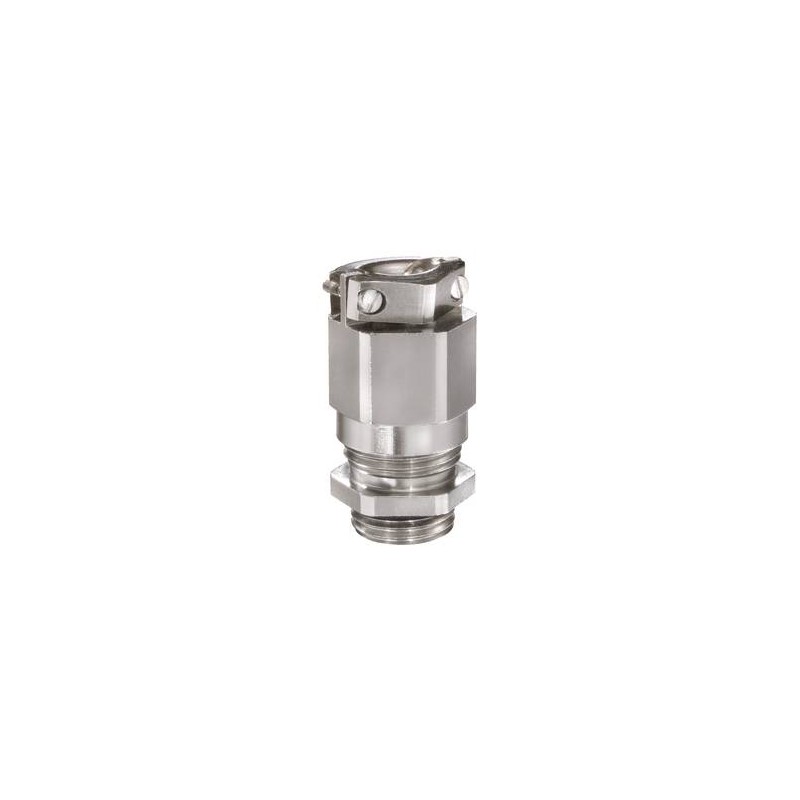

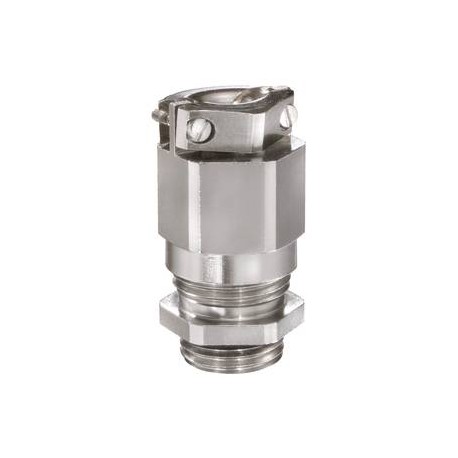

EMSKVZ 63 10065357 WISKA Metal cable glands + IP68 flange clamping, range from 34 to 48mm, thread M63
EMSKVZ 63
10065357
WISKA
5
Metal cable glands + IP68 flange clamping, range from 34 to 48mm, thread M63
Cable gland, brass nickel-plated, M63, with external strain relief
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | M |
| Ø Connection thread D | 63 |
| Lead | 1,5 |
| Length screw-in thread L | 10 mm |
| Ø cable diameter min | 34 mm |
| Ø cable diameter max | 48 mm |
| Ø cable diameter UL | 38,1 mm - 47,5 mm |
| Key width SW | 68 mm |
| Collar diameter (E) | 75 mm |
| Total length TL | 73 mm - 84 mm |
| Type of cable anchorage | B |
| Install. torques fitting | 40 N m |
| Install. torques cap nut | 40 N m |
| Impact category | 6 |
| Torque clamp srew | 0,6 N m |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10065357 |
| Packing unit | 5 |
| Type | EMSKVZ 63 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMSKVZ 63 10065357 EN_10065357.pdf | 332 Kbytes |
|
