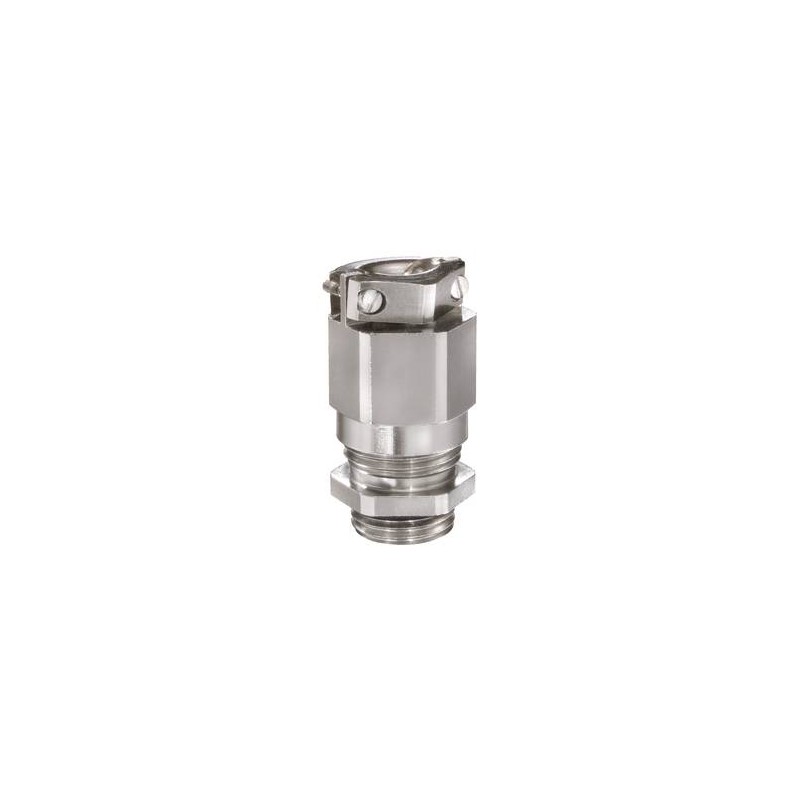

EMSKVZ 40 10065355 WISKA Metal cable glands + IP68 flange clamping, 16 to 28mm range, M40 thread
EMSKVZ 40
10065355
WISKA
5
Metal cable glands + IP68 flange clamping, 16 to 28mm range, M40 thread
Cable gland, brass nickel-plated, M40, with external strain relief
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | M |
| Ø Connection thread D | 40 |
| Lead | 1,5 |
| Length screw-in thread L | 8 mm |
| Ø cable diameter min | 16 mm |
| Ø cable diameter max | 28 mm |
| Ø cable diameter UL | 17,4 mm - 26,4 mm |
| Key width SW | 46 mm |
| Collar diameter (E) | 51 mm |
| Total length TL | 54 mm - 65 mm |
| Type of cable anchorage | B |
| Install. torques fitting | 20 N m |
| Install. torques cap nut | 20 N m |
| Impact category | 6 |
| Torque clamp srew | 0,5 N m |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10065355 |
| Packing unit | 5 |
| Type | EMSKVZ 40 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| EMSKVZ 40 10065355 EN_10065355.pdf | 332 Kbytes |
|
