EMSKVZ 32 10065354 WISKA Metal cable glands + IP68 flange clamping, 13 to 21mm range, M32 thread
EMSKVZ 32
10065354
WISKA
10
Metal cable glands + IP68 flange clamping, 13 to 21mm range, M32 thread

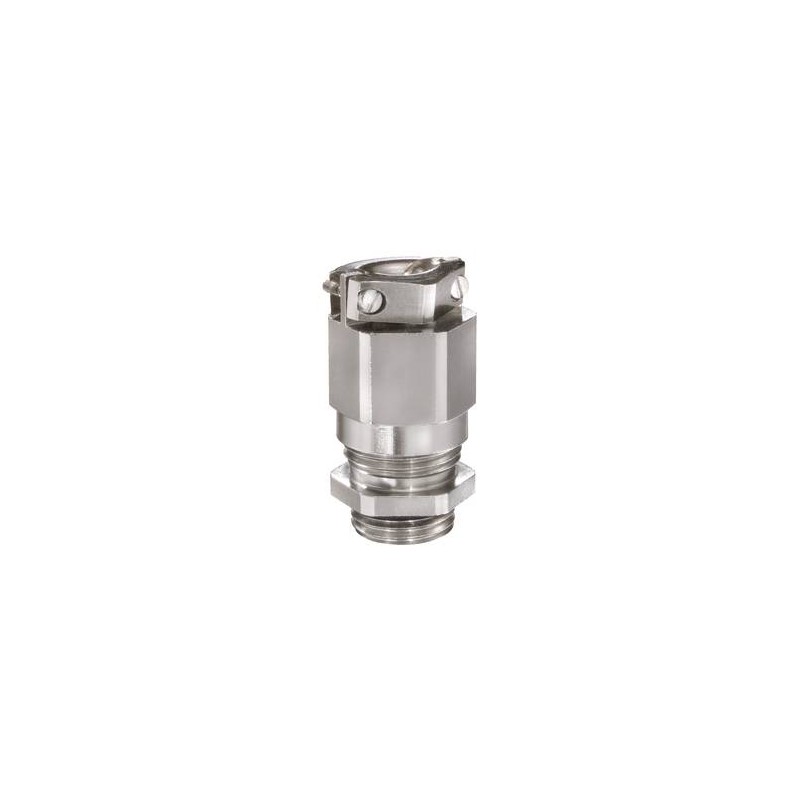

Cable gland, brass nickel-plated, M32, with external strain relief
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | M |
| Ø Connection thread D | 32 |
| Lead | 1,5 |
| Length screw-in thread L | 8 mm |
| Ø cable diameter min | 13 mm |
| Ø cable diameter max | 21 mm |
| Ø cable diameter UL | 10,8 mm - 15,8 mm |
| Key width SW | 36 mm |
| Collar diameter (E) | 40 mm |
| Total length TL | 45 mm - 54 mm |
| Type of cable anchorage | B |
| Install. torques fitting | 20 N m |
| Install. torques cap nut | 20 N m |
| Impact category | 6 |
| Torque clamp srew | 0,5 N m |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10065354 |
| Packing unit | 10 |
| Type | EMSKVZ 32 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMSKVZ 32 10065354 EN_10065354.pdf | 331 Kbytes |
|
