EMSKVZ 20 10065352 WISKA Metal cable glands + IP68 flange clamping, range from 6 to 13mm, thread M20
EMSKVZ 20
10065352
WISKA
25
Metal cable glands + IP68 flange clamping, range from 6 to 13mm, thread M20

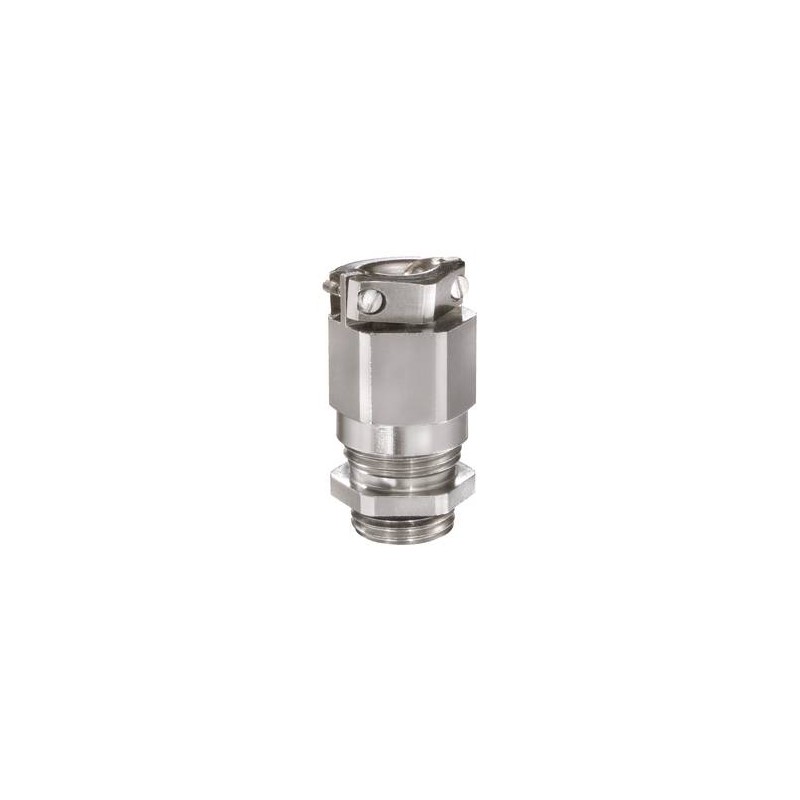

Cable gland, brass nickel-plated, M20, with external strain relief
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 20 |
| Lead | 1,5 |
| Length screw-in thread L | 6 mm |
| Ø cable diameter min | 6 mm |
| Ø cable diameter max | 13 mm |
| Ø cable diameter UL | 7,5 mm - 11,3 mm |
| Key width SW | 24 mm |
| Collar diameter (E) | 27 mm |
| Total length TL | 37 mm - 45 mm |
| Type of cable anchorage | B |
| Install. torques fitting | 8 N m |
| Install. torques cap nut | 8 N m |
| Impact category | 6 |
| Torque clamp srew | 0,4 N m |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10065352 |
| Packing unit | 25 |
| Type | EMSKVZ 20 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMSKVZ 20 10065352 EN_10065352.pdf | 331 Kbytes |
|
