EMSKVZ 16 10065351 WISKA Metal cable glands + IP68 flange clamping, 4.5 to 10mm range, M16 thread
EMSKVZ 16
10065351
WISKA
25
Metal cable glands + IP68 flange clamping, 4.5 to 10mm range, M16 thread

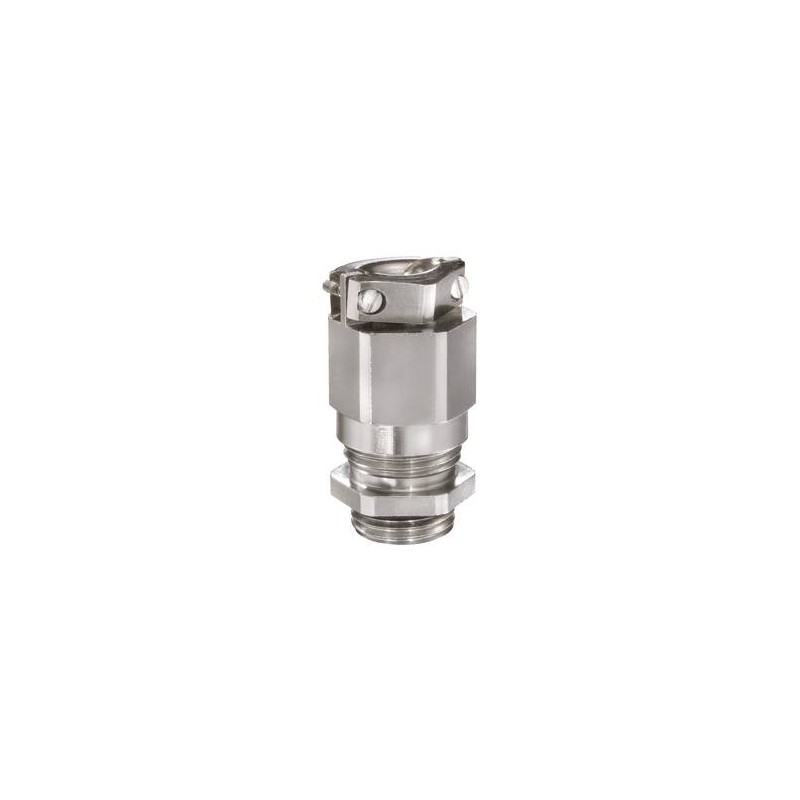

Cable gland, brass nickel-plated, M16, with external strain relief
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 16 |
| Lead | 1,5 |
| Length screw-in thread L | 5 mm |
| Ø cable diameter min | 4,5 mm |
| Ø cable diameter max | 10 mm |
| Ø cable diameter UL | 6 mm - 8,6 mm |
| Key width SW | 20 mm |
| Collar diameter (E) | 22 mm |
| Total length TL | 34 mm - 42 mm |
| Type of cable anchorage | B |
| Install. torques fitting | 4 N m |
| Install. torques cap nut | 4 N m |
| Impact category | 6 |
| Torque clamp srew | 0,3 N m |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10065351 |
| Packing unit | 25 |
| Type | EMSKVZ 16 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMSKVZ 16 10065351 EN_10065351.pdf | 331 Kbytes |
|
