EMSKVS-L 63 10065857 WISKA IP68 metal cable glands, flexible protection input range from 34 to 48mm, long th..
EMSKVS-L 63
10065857
WISKA
10
IP68 metal cable glands, flexible protection input range from 34 to 48mm, long thread M63

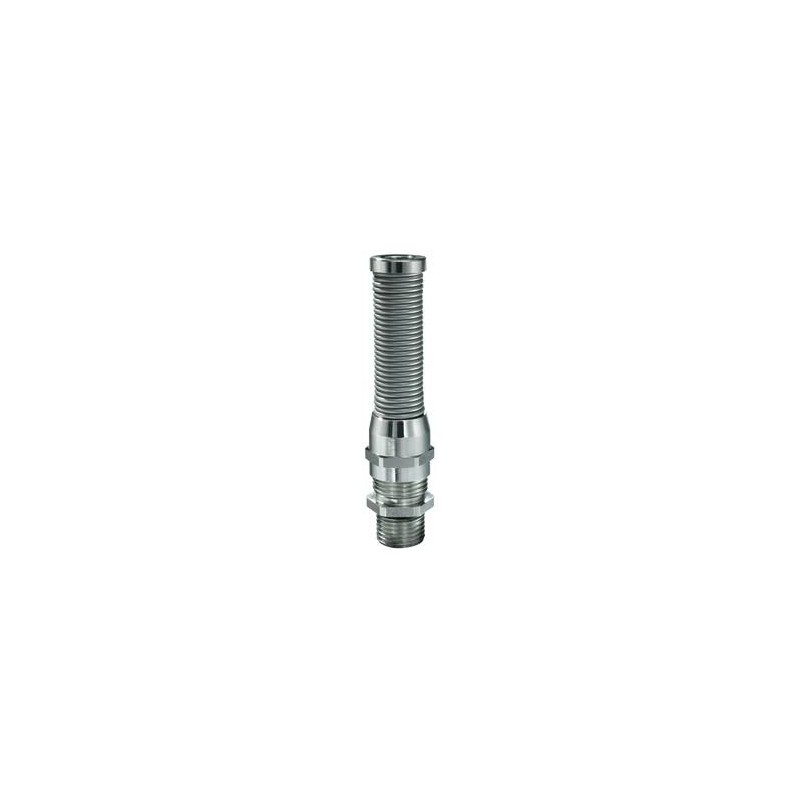

Cable gland, brass nickel-plated, M63, with bend protection and long thread
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | M |
| Ø Connection thread D | 63 |
| Lead | 1,5 |
| Length screw-in thread L | 15 mm |
| Ø cable diameter min | 34 mm |
| Ø cable diameter max | 48 mm |
| Ø cable diameter UL | 38,1 mm - 47,5 mm |
| Key width SW | 68 mm |
| Collar diameter (E) | 75 mm |
| Total length TL | 304 mm - 315 mm |
| Install. torques fitting | 40 N m |
| Install. torques cap nut | 40 N m |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10065857 |
| Packing unit | 10 |
| Type | EMSKVS-L 63 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMSKVS-L 63 10065857 EN_10065857.pdf | 474 Kbytes |
|
