EMSKVS-L 16 10065851 WISKA IP68 metal cable glands, flexible protection input range from 4.5 to 10mm, long t..
EMSKVS-L 16
10065851
WISKA
50
IP68 metal cable glands, flexible protection input range from 4.5 to 10mm, long thread M16

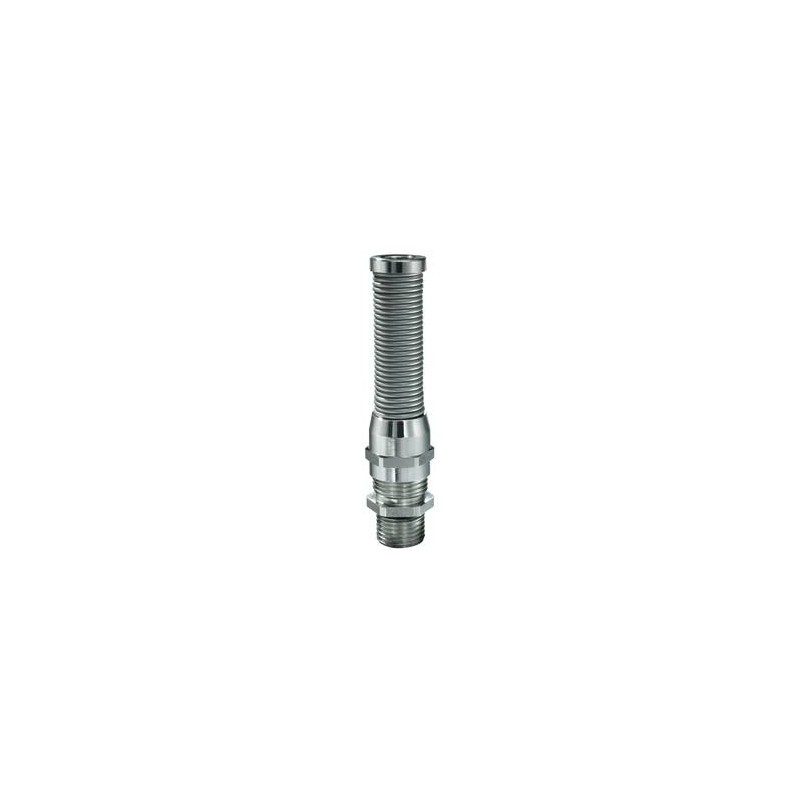

Cable gland, brass nickel-plated, M16, with bend protection and long thread
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 16 |
| Lead | 1,5 |
| Length screw-in thread L | 12 mm |
| Ø cable diameter min | 4,5 mm |
| Ø cable diameter max | 10 mm |
| Ø cable diameter UL | 6 mm - 8,6 mm |
| Key width SW | 20 mm |
| Collar diameter (E) | 22 mm |
| Total length TL | 83 mm - 91 mm |
| Install. torques fitting | 4 N m |
| Install. torques cap nut | 4 N m |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10065851 |
| Packing unit | 50 |
| Type | EMSKVS-L 16 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMSKVS-L 16 10065851 EN_10065851.pdf | 473 Kbytes |
|
