EMSKV-L 63 RW 10106181 WISKA Metal cable glands, IP68, range from 34 to 48mm, long thread M63, EN 45545
EMSKV-L 63 RW
10106181
WISKA
10
Metal cable glands, IP68, range from 34 to 48mm, long thread M63, EN 45545

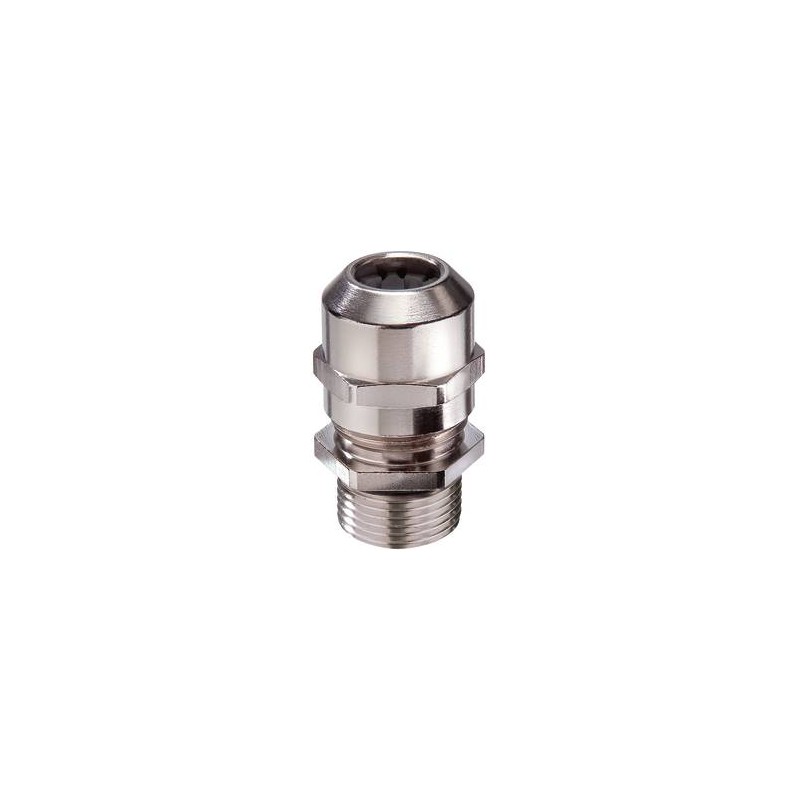

Railway cable gland, brass nickel-plated, with long thread, M63
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | EPDM |
| Material clamping cage | Polyamide UL94-V0 |
| Hazard level EN acc. 45545 | R22=HL3 / R23=HL3 / R24=HL3 |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | M |
| Ø Connection thread D | 63 |
| Lead | 1,5 |
| Length screw-in thread L | 15 mm |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Ø cable diameter min | 34 mm |
| Ø cable diameter max | 48 mm |
| Key width SW | 68 mm |
| Collar diameter (E) | 75 mm |
| Total length TL | 61 mm - 72 mm |
| Install. torques fitting | 40 N m |
| Install. torques cap nut | 40 N m |
| Type of cable anchorage | A |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10106181 |
| Type | EMSKV-L 63 RW |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMSKV-L 63 RW 10106181 EN_10106181.pdf | 395 Kbytes |
|
